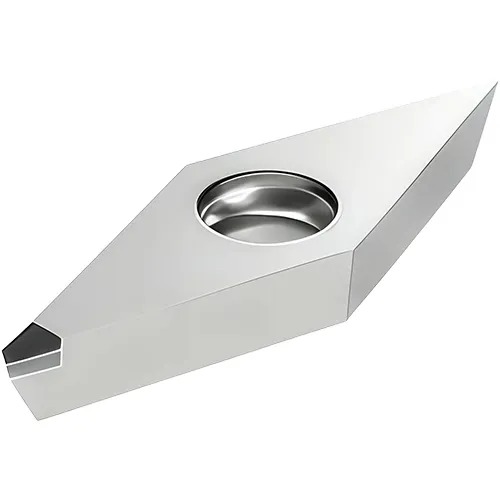

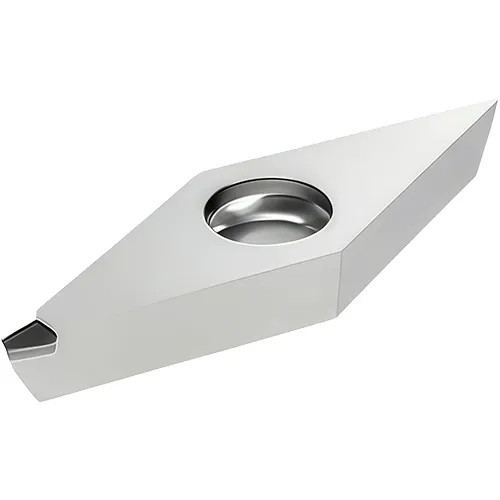

PCD Tools, VCGW
PCD Tools, VCGW
PCD Tools, VCGW

PCD Tools, VCGW

(PCD Turning Tool, PCD Milling Tool, PCD Boring Tool, PCD Grooving Tool, PCD Threading Tool)
Request a Quote
Technical Specifications

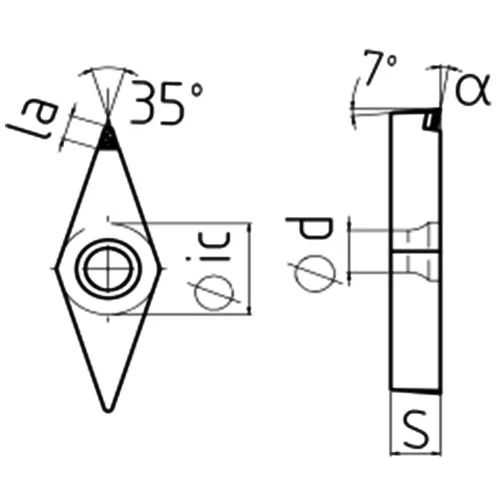

ISO Code ANSI Code Tips Edge Length Hole Diameter Thickness Rake Nose Radius Tip Length
ic Ød s α r la
VCGW110302 VCGW22(0.5) 1N 6.35 2.8 3.18 0° 0.2 2.5
VCGT110302 VCGT22(0.5) 1N 6.35 2.8 3.18 5° 0.2 2.5
VCGT110302 VCGT22(0.5) 1N 6.35 2.8 3.18 10° 0.2 2.5
VCGW110304 VCGW221 1N 6.35 2.8 3.18 0° 0.4 2.5
VCGT110304 VCGT221 1N 6.35 2.8 3.18 5° 0.4 2.5
VCGT110304 VCGT221 1N 6.35 2.8 3.18 10° 0.4 2.5
VCGW110308 VCGW222 1N 6.35 2.8 3.18 0° 0.8 2.5
VCGT110308 VCGT222 1N 6.35 2.8 3.18 5° 0.8 2.5
VCGT110308 VCGT222 1N 6.35 2.8 3.18 10° 0.8 2.5
VCGW110302 VCGW22(0.5) 2N 6.35 2.8 3.18 0° 0.2 2.5
VCGT110302 VCGT22(0.5) 2N 6.35 2.8 3.18 5° 0.2 2.5
VCGT110302 VCGT22(0.5) 2N 6.35 2.8 3.18 10° 0.2 2.5
VCGW110304 VCGW221 2N 6.35 2.8 3.18 0° 0.4 2.5
VCGT110304 VCGT221 2N 6.35 2.8 3.18 5° 0.4 2.5
VCGT110304 VCGT221 2N 6.35 2.8 3.18 10° 0.4 2.5
VCGW110308 VCGW222 2N 6.35 2.8 3.18 0° 0.8 2.5
VCGT110308 VCGT222 2N 6.35 2.8 3.18 5° 0.8 2.5
VCGT110308 VCGT222 2N 6.35 2.8 3.18 10° 0.8 2.5
VCGW160402 VCGW33(0.5) 1N 9.525 4.4 4.76 0° 0.2 2.5
VCGT160402 VCGT33(0.5) 1N 9.525 4.4 4.76 5° 0.2 2.5
VCGT160402 VCGT33(0.5) 1N 9.525 4.4 4.76 10° 0.2 2.5
VCGW160404 VCGW331 1N 9.525 4.4 4.76 0° 0.4 2.5
VCGT160404 VCGT331 1N 9.525 4.4 4.76 5° 0.4 2.5
VCGT160404 VCGT331 1N 9.525 4.4 4.76 10° 0.4 2.5
VCGW160408 VCGW332 1N 9.525 4.4 4.76 0° 0.8 2.5
VCGT160408 VCGT332 1N 9.525 4.4 4.76 5° 0.8 2.5
VCGT160408 VCGT332 1N 9.525 4.4 4.76 10° 0.8 2.5
VCGW160402 VCGW33(0.5) 2N 9.525 4.4 4.76 0° 0.2 2.5
VCGT160402 VCGT33(0.5) 2N 9.525 4.4 4.76 5° 0.2 2.5
VCGT160402 VCGT33(0.5) 2N 9.525 4.4 4.76 10° 0.2 2.5
VCGW160404 VCGW331 2N 9.525 4.4 4.76 0° 0.4 2.5
VCGT160404 VCGT331 2N 9.525 4.4 4.76 5° 0.4 2.5
VCGT160404 VCGT331 2N 9.525 4.4 4.76 10° 0.4 2.5
VCGW160408 VCGW332 2N 9.525 4.4 4.76 0° 0.8 2.5
VCGT160408 VCGT332 2N 9.525 4.4 4.76 5° 0.8 2.5
VCGT160408 VCGT332 2N 9.525 4.4 4.76 10° 0.8 2.5
PCD Grades & Cutting Parameters
Cutting Recommendation Nonferrous Metals
PCD Grade PD10 PD20 PD30
Workpiece Material Aluminum alloy Low-silicon aluminum alloy High-silicon aluminum alloy
Cutting Speed (Vc) 750(500-1000) m/min 500 (300-800) m/min 350 (200-500) m/min
Feed per Revolution (Fn) 0.15(0.03-0.3) mm/r 0.15 (0.03-0.3) mm/r 0.15(0.03-0.3) mm/r
PCD Grade Comparison
Class Winice Tungaloy Mitsubishi Sumitomo Sandvik Kyocera Hitachi Dijet NTK Seco Kennametal Iscar Taegutec Widia Walter Ceratizit Centech
-EG 		ZCC.CT
N N10 PD10 DX140 MD205
MD220 		DA150 CD10 KPD001
KPD010
KPD230 		JDA715 PD1 PCD05
PCD10
PCD20 		KD100
KD1400
KD1425 		ID5 KP500 WDN25U WCD10 CTD4125
CTD4110 		MD02 DN1011
DN0511
N20 PD20 DX120 MD220
MD230 		DA2200
DA1000 		CD10 KPD001
KPD010
KPD230 		JDA715 PD1 PCD05
PCD20 		KD1425 ID8 KP300 WDN25U WCD10 CTD4205 MD04
MD03 		DN1031
N30 PD30 DX110 MD230 DA2200
DA1000 		JDA10 PCD20
PCD30
PCD30M 		ID8 KP100 MD01 DN3021
