CCGW DCGW TCGW TPGW VBGW VCGW

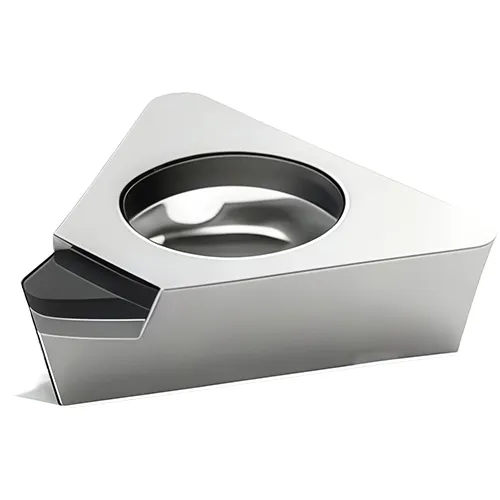

PCD Tools, TPGW

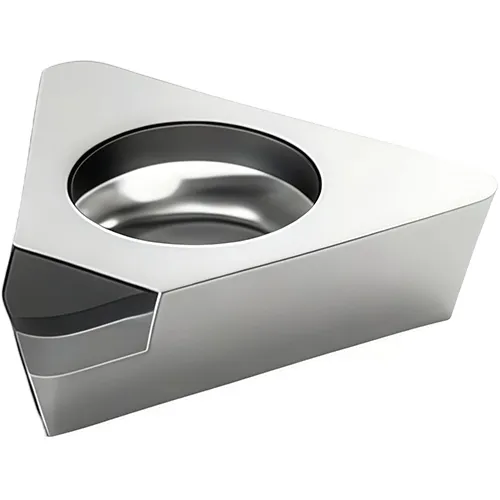

PCD Tools, TPGW
PCD Tools, TPGW

PCD Tools, TPGW

(PCD Turning Tool, PCD Milling Tool, PCD Boring Tool, PCD Grooving Tool, PCD Threading Tool)
Request a Quote
Technical Specifications
ISO Code ANSI Code Tips Edge Length Hole Diameter Thickness Rake Nose Radius Tip Length

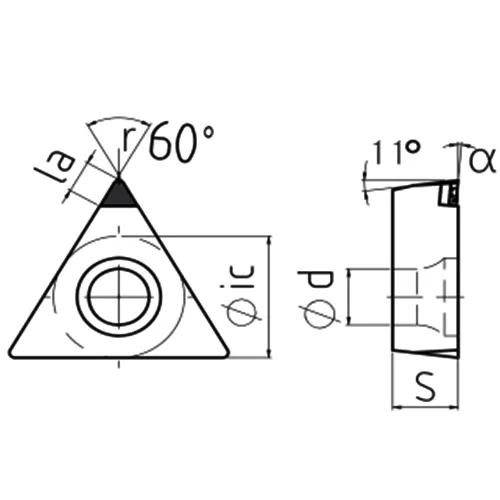

ic Ød s α r la
TPGW080202 TPGW(1.5)(1.5)(0.5) 1N 4.76 2.4 2.38 0° 0.2 2.5
TPGT080202 TPGT(1.5)(1.5)(0.5) 1N 4.76 2.4 2.38 5° 0.2 2.5
TPGT080202 TPGT(1.5)(1.5)(0.5) 1N 4.76 2.4 2.38 10° 0.2 2.5
TPGW080204 TPGW(1.5)(1.5)1 1N 4.76 2.4 2.38 0° 0.4 2.5
TPGT080204 TPGT(1.5)(1.5)1 1N 4.76 2.4 2.38 5° 0.4 2.5
TPGT080204 TPGT(1.5)(1.5)1 1N 4.76 2.4 2.38 10° 0.4 2.5
TPGW080208 TPGW(1.5)(1.5)2 1N 4.76 2.4 2.38 0° 0.8 2.5
TPGT080208 TPGT(1.5)(1.5)2 1N 4.76 2.4 2.38 5° 0.8 2.5
TPGT080208 TPGT(1.5)(1.5)2 1N 4.76 2.4 2.38 10° 0.8 2.5
TPGW080202 TPGW(1.5)(1.5)(0.5) 3N 4.76 2.4 2.38 0° 0.2 2.5
TPGT080202 TPGT(1.5)(1.5)(0.5) 3N 4.76 2.4 2.38 5° 0.2 2.5
TPGT080202 TPGT(1.5)(1.5)(0.5) 3N 4.76 2.4 2.38 10° 0.2 2.5
TPGW080204 TPGW(1.5)(1.5)1 3N 4.76 2.4 2.38 0° 0.4 2.5
TPGT080204 TPGT(1.5)(1.5)1 3N 4.76 2.4 2.38 5° 0.4 2.5
TPGT080204 TPGT(1.5)(1.5)1 3N 4.76 2.4 2.38 10° 0.4 2.5
TPGW080208 TPGW(1.5)(1.5)2 3N 4.76 2.4 2.38 0° 0.8 2.5
TPGT080208 TPGT(1.5)(1.5)2 3N 4.76 2.4 2.38 5° 0.8 2.5
TPGT080208 TPGT(1.5)(1.5)2 3N 4.76 2.4 2.38 10° 0.8 2.5
TPGW110302 TPGW22(0.5) 1N 6.35 3.3 3.18 0° 0.2 2.5
TPGT110302 TPGT22(0.5) 1N 6.35 3.3 3.18 5° 0.2 2.5
TPGT110302 TPGT22(0.5) 1N 6.35 3.3 3.18 10° 0.2 2.5
TPGW110304 TPGW221 1N 6.35 3.3 3.18 0° 0.4 2.5
TPGT110304 TPGT221 1N 6.35 3.3 3.18 5° 0.4 2.5
TPGT110304 TPGT221 1N 6.35 3.3 3.18 10° 0.4 2.5
TPGW110308 TPGW222 1N 6.35 3.3 3.18 0° 0.8 2.5
TPGT110308 TPGT222 1N 6.35 3.3 3.18 5° 0.8 2.5
TPGT110308 TPGT222 1N 6.35 3.3 10° 0.8 2.5
TPGW110302 TPGW22(0.5) 3N 6.35 3.3 3.18 0° 0.2 2.5
TPGT110302 TPGT22(0.5) 3N 6.35 3.3 3.18 5° 0.2 2.5
TPGT110302 TPGT22(0.5) 3N 6.35 3.3 3.18 10° 0.2 2.5
TPGW110304 TPGW221 3N 6.35 3.3 3.18 0° 0.4 2.5
TPGT110304 TPGT221 3N 6.35 3.3 3.18 5° 0.4 2.5
TPGT110304 TPGT221 3N 6.35 3.3 3.18 10° 0.4 2.5
TPGW110308 TPGW222 3N 6.35 3.3 3.18 0° 0.8 2.5
TPGT110308 TPGT222 3N 6.35 3.3 3.18 5° 0.8 2.5
TPGT110308 TPGT222 3N 6.35 3.3 3.18 10° 0.8 2.5
TPGW160302 TPGW32(0.5) 1N 9.525 4.4 3.18 0° 0.2 2.5
TPGT160302 TPGT32(0.5) 1N 9.525 4.4 3.18 5° 0.2 2.5
TPGT160302 TPGT32(0.5) 1N 9.525 4.4 3.18 10° 0.2 2.5
TPGW160304 TPGW321 1N 9.525 4.4 3.18 0° 0.4 2.5
TPGT160304 TPGT321 1N 9.525 4.4 3.18 5° 0.4 2.5
TPGT160304 TPGT321 1N 9.525 4.4 3.18 10° 0.4 2.5
TPGW160308 TPGW322 1N 9.525 4.4 3.18 0° 0.8 2.5
TPGT160308 TPGT322 1N 9.525 4.4 3.18 5° 0.8 2.5
TPGT160308 TPGT322 1N 9.525 4.4 3.18 10° 0.8 2.5
TPGW160302 TPGW32(0.5) 3N 9.525 4.4 3.18 0° 0.2 2.5
TPGT160302 TPGT32(0.5) 3N 9.525 4.4 3.18 5° 0.2 2.5
TPGT160302 TPGT32(0.5) 3N 9.525 4.4 3.18 10° 0.2 2.5
TPGW160304 TPGW321 3N 9.525 4.4 3.18 0° 0.4 2.5
TPGT160304 TPGT321 3N 9.525 4.4 3.18 5° 0.4 2.5
TPGT160304 TPGT321 3N 9.525 4.4 3.18 10° 0.4 2.5
TPGW160308 TPGW322 3N 9.525 4.4 3.18 0° 0.8 2.5
TPGT160308 TPGT322 3N 9.525 4.4 3.18 5° 0.8 2.5
TPGT160308 TPGT322 3N 9.525 4.4 3.18 10° 0.8 2.5
TPGW160402 TPGW33(0.5) 1N 9.525 4.4 4.76 0° 0.2 2.5
TPGT160402 TPGT33(0.5) 1N 9.525 4.4 4.76 5° 0.2 2.5
TPGT160402 TPGT33(0.5) 1N 9.525 4.4 4.76 10° 0.2 2.5
TPGW160404 TPGW331 1N 9.525 4.4 4.76 0° 0.4 2.5
TPGT160404 TPGT331 1N 9.525 4.4 4.76 5° 0.4 2.5
TPGT160404 TPGT331 1N 9.525 4.4 4.76 10° 0.4 2.5
TPGW160408 TPGW332 1N 9.525 4.4 4.76 0° 0.8 2.5
TPGT160408 TPGT332 1N 9.525 4.4 4.76 5° 0.8 2.5
TPGT160408 TPGT332 1N 9.525 4.4 4.76 10° 0.8 2.5
TPGW160402 TPGW33(0.5) 3N 9.525 4.4 4.76 0° 0.2 2.5
TPGT160402 TPGT33(0.5) 3N 9.525 4.4 4.76 5° 0.2 2.5
TPGT160402 TPGT33(0.5) 3N 9.525 4.4 4.76 10° 0.2 2.5
TPGW160404 TPGW331 3N 9.525 4.4 4.76 0° 0.4 2.5
TPGT160404 TPGT331 3N 9.525 4.4 4.76 5° 0.4 2.5
TPGT160404 TPGT331 3N 9.525 4.4 4.76 10° 0.4 2.5
TPGW160408 TPGW332 3N 9.525 4.4 4.76 0° 0.8 2.5
TPGT160408 TPGT332 3N 9.525 4.4 4.76 5° 0.8 2.5
TPGT160408 TPGT332 3N 9.525 4.4 4.76 10° 0.8 2.5
PCD Grades & Cutting Parameters
Cutting Recommendation Nonferrous Metals
PCD Grade PD10 PD20 PD30
Workpiece Material Aluminum alloy Low-silicon aluminum alloy High-silicon aluminum alloy
Cutting Speed (Vc) 750(500-1000) m/min 500 (300-800) m/min 350 (200-500) m/min
Feed per Revolution (Fn) 0.15(0.03-0.3) mm/r 0.15 (0.03-0.3) mm/r 0.15(0.03-0.3) mm/r
PCD Grade Comparison
Class Winice Tungaloy Mitsubishi Sumitomo Sandvik Kyocera Hitachi Dijet NTK Seco Kennametal Iscar Taegutec Widia Walter Ceratizit Centech
-EG 		ZCC.CT
N N10 PD10 DX140 MD205
MD220 		DA150 CD10 KPD001
KPD010
KPD230 		JDA715 PD1 PCD05
PCD10
PCD20 		KD100
KD1400
KD1425 		ID5 KP500 WDN25U WCD10 CTD4125
CTD4110 		MD02 DN1011
DN0511
N20 PD20 DX120 MD220
MD230 		DA2200
DA1000 		CD10 KPD001
KPD010
KPD230 		JDA715 PD1 PCD05
PCD20 		KD1425 ID8 KP300 WDN25U WCD10 CTD4205 MD04
MD03 		DN1031
N30 PD30 DX110 MD230 DA2200
DA1000 		JDA10 PCD20
PCD30
PCD30M 		ID8 KP100 MD01 DN3021
Recommended Machining Equipment

Winice specializes in providing integrated machining solutions, combining high-performance machining equipment with PCBN/PCD tooling. We deliver comprehensive processing solutions—from hard turning and thread whirling to induction hardening and superfinishing—for various precision components such as ball screws, planetary screws, and bearings.
