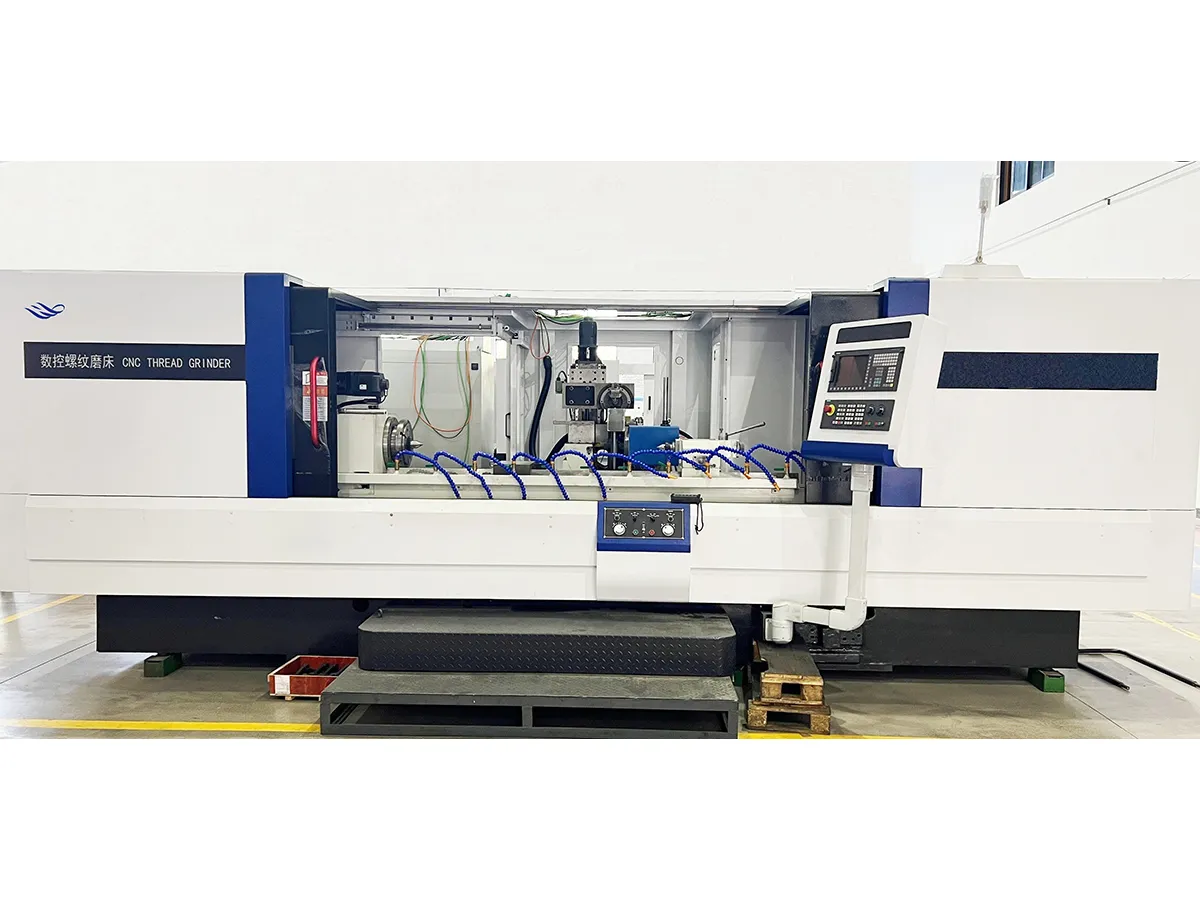

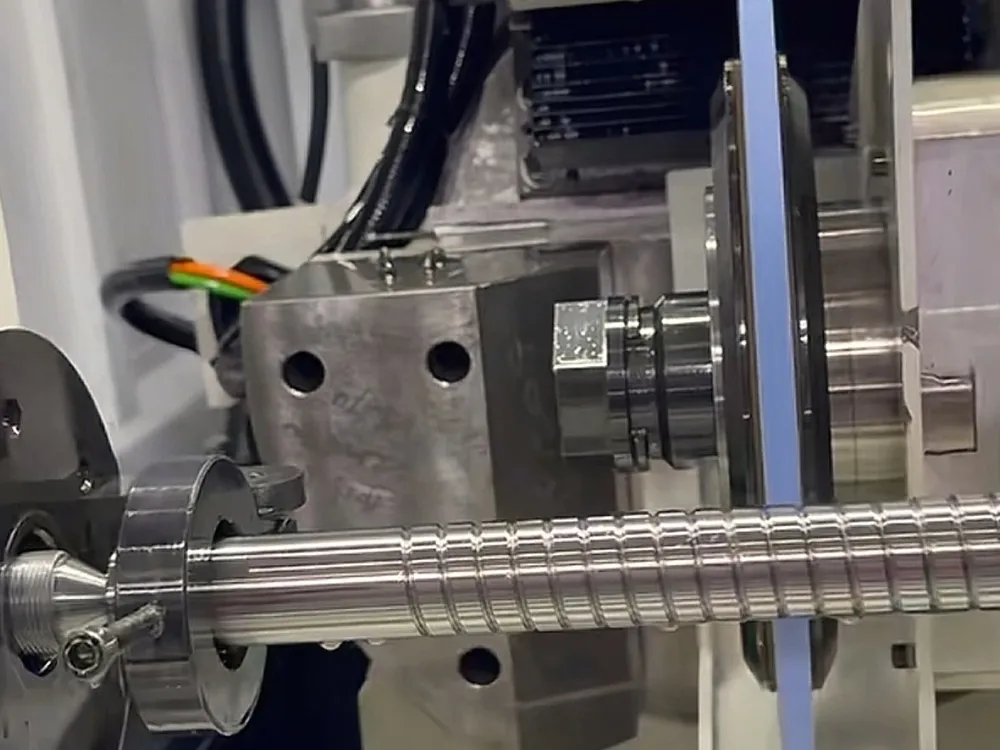

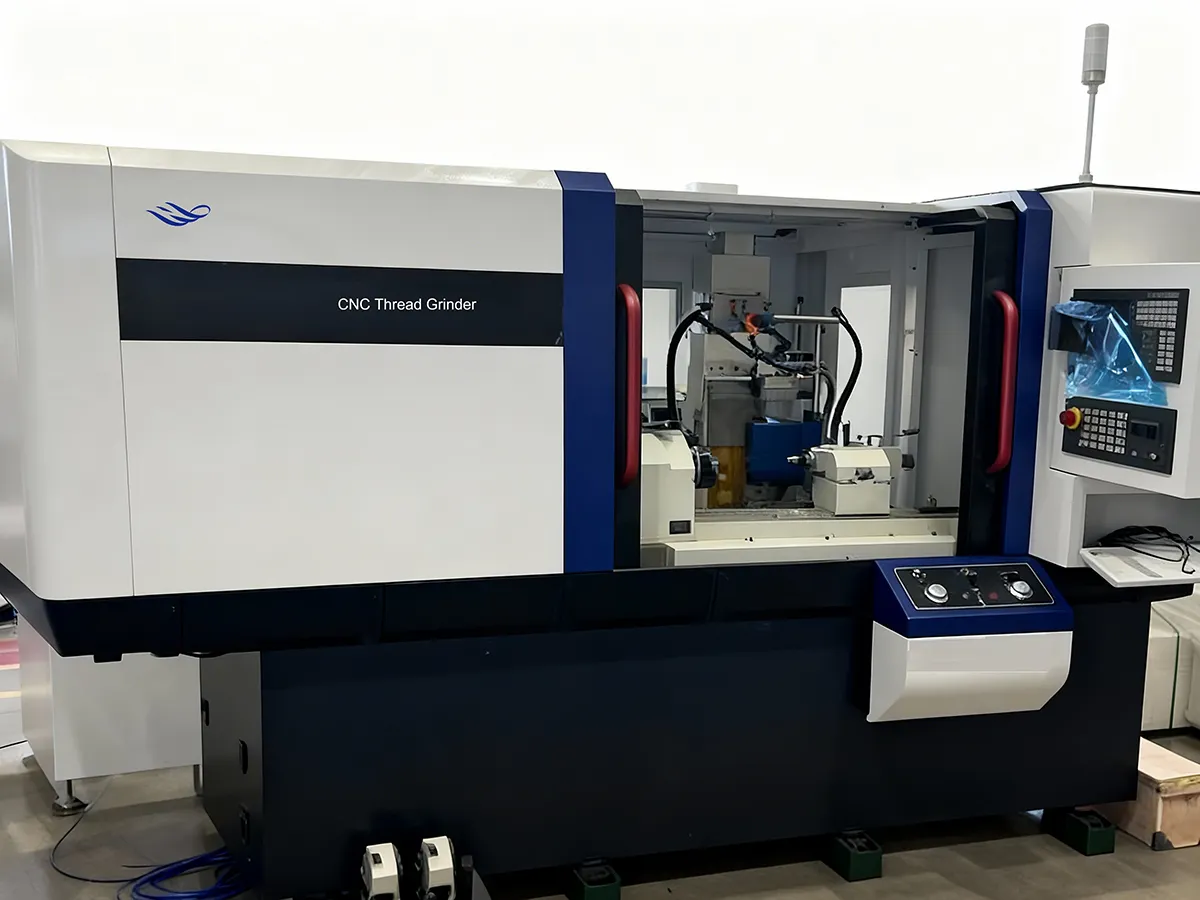

    • A CNC high precision thread grinding machine is a dedicated machining system designed for grinding high-accuracy threads under CNC control. By executing pre-programmed machining paths, the grinding machine precisely controls the relative motion and speed between the grinding wheel and the workpiece to form external and internal threads through profile grinding. Micron-level machining accuracy can be achieved, making the grinder ideal for processing high-precision threaded components such as ball screws, precision worm shafts, and trapezoidal screws. The grinding machine is widely used in precision transmission equipment for machine tools and robotics, as well as in aerospace and high-end automotive manufacturing for transmission component grinding.

    Technical Parameters and Selection Guidel
    Model: WNCK-500/800/1080/1500/2000/3000 CNC Thread Grinding Machine

    This grinder series adopts a moving-table design, with available grinding lengths of 380mm, 750mm, 1100mm, 1500mm, 2000mm, and 3000mm respectively.

    Technical Parameters

    Model WNCK500 WNCK800 WNCK1080 WNCK1500 WNCK2000 WNCK3000 WNCK3000A
    Max. Grinding Diameter (Disk Type) Ø300mm Ø300mm Ø300mm Ø360mm Ø400mm Ø400mm Ø500mm
    Max. Grinding Diameter with Center Rest Ø80mm Ø80mm Ø80mm Ø160mm Ø160mm Ø220mm Ø400mm
    Min. Grinding Diameter Ø8mm Ø8mm Ø10mm Ø12mm Ø16mm Ø16mm Ø20mm
    Max. Distance Between Centers 500 mm 800 mm 1250 mm 1600 mm 2200 mm 3200 mm 3100 mm
    Max. Thread Grinding Length 380 mm 750 mm 1100 mm 1500 mm 2000 mm 3000 mm 3000 mm
    Center Height 180 mm 180 mm 245 mm 210 mm 225 mm 225 mm 280 mm
    Rotation Speed of Workpiece 0-80 r/min 0-80 r/min 0-100 r/min 0-150 r/min 0-150 r/min 0-150 r/min 0-150 r/min
    Worktable Traverse Speed 0-5.0 m/min 0-5.0 m/min 0-5.0 m/min 0-5.0 m/min 0-5.0 m/min 0-5.0 m/min 0-5.0 m/min
    Wheel Head Feed Rate 0-5.0 m/min 0-5.0 m/min 0-5.0 m/min 0-5.0 m/min 0-5.0 m/min 0-5.0 m/min 0-5.0 m/min
    Dressing Tool Feed Rate 0-1 m/min 0-1 m/min 0-1 m/min 0-1 m/min 0-1 m/min 0-1 m/min 0-1 m/min
    Wheel Head Transverse Travel 150 mm 150 mm 220 mm 220 mm 220 mm 220 mm 220 mm
    Wheel Spindle Speed 1000-3000 r/min 1000-3000 r/min 1000-3000 r/min 1000-3000 r/min 1000-3000 r/min 1000-3000 r/min 1000-3000 r/min
    Wheel Size (OD×ID) Ø400×Ø203 mm Ø400×Ø203 mm Ø500×Ø305 mm Ø500×Ø305 mm Ø500×Ø305 mm Ø500×Ø305 mm Ø500×Ø305 mm
    Dimensions (L×W×H) 3000×2000×2000 mm 3500×2000×2000 mm 5100×2700×2250 mm 6000×2200×2100 mm 7000×2600×1900 mm 9000×2600×2100 mm 9000×2600×2100 mm
    Machine Weight 5000 kg 6000 kg 11000 kg 12000 kg 13000 kg 15000 kg 15000 kg
    Thread Surface Roughness Ra≤0.32μm Ra≤0.32μm Ra≤0.32μm Ra≤0.32μm Ra≤0.32μm Ra≤0.32μm Ra≤0.32μm
    Model: WNCK-4000/5000/6800/8500 CNC Thread Grinding Machine

    This grinding machine series adopts a moving wheelhead design with a spindle through-hole diameter of 130mm, extendable up to 160mm. With an additional rear bed, the maximum grinding length can reach up to 14 meters.

    Technical Parameters

    Model WNCK4000A WNCK4000 WNCK5000 WNCK6800 WNCK8500
    Max. Grinding Diameter (Disk Type) Ø500 mm Ø400 mm Ø400 mm Ø500 mm Ø500 mm
    Max. Grinding Diameter with Center Rest Ø500 mm Ø300 mm Ø300 mm Ø300 mm Ø300 mm
    Min. Grinding Diameter Ø20 mm Ø20 Ø20 Ø30 Ø30
    Max. Distance Between Centers 4000 mm 4200 mm 5300 mm 6800 mm 8500 mm
    Max. Thread Grinding Length 3800 mm 3900 mm 5000 mm 6400 mm 8200 mm
    Center Height 350 mm 250 mm 250 mm 320 mm 320 mm
    Rotation Speed of Workpiece 0-150 r/min 0-150 r/min 0-150 r/min 0-150 r/min 0-150 r/min
    Worktable Traverse Speed 0-6.0 m/min 0-6.0 m/min 0-6.0 m/min 0-6.0 m/min 0-6.0 m/min
    Wheel Head Transverse Travel 220 mm 220 mm 220 mm 220 mm 220 mm
    Wheel Spindle Speed 1000-3000 r/min 1000-3000 r/min 1000-3000 r/min 1000-3000 r/min 1000-3000 r/min
    Wheel Size (OD×ID) Ø500×Ø305 mm Ø500×Ø305 mm Ø500×Ø305 mm Ø500×Ø305 mm Ø500×Ø305 mm
    Dimensions (L×W×H) 8500×2200×2100 mm 8500×2200×2100 mm 9500×2200×2100 mm 10500×2600×2600 mm 12500×2600×2600 mm
    Machine Weight 20000 kg 20000 kg 22000 kg 23500 kg 30000 kg
    Thread Surface Roughness Ra≤0.32μm Ra≤0.32μm Ra≤0.32μm Ra≤0.32μm Ra≤0.32μm
    Key Advantages
    • Exceptional Machining Accuracy and Stability: Advanced CNC control, high-rigidity mechanical structures, and real-time error compensation technologies enable lead error ≤3µm and profile accuracy ≤1µm, ensuring long-term machining consistency.
    • Strong Capability for Complex Thread Profiles: Multi-axis synchronous control allows external threads, internal threads, multi-start threads, and variable-lead threads to be ground in a single setup.
    • Excellent Batch Production Stability: Equipped with automatic wheel dressing, automatic balancing, and in-process measurement functions, the system dynamically compensates for errors caused by thermal deformation and mechanical wear. Batch production yield can exceed 99.8%.
    • Large Machining Capacity: Maximum workpiece length reaches 8000mm, with a maximum diameter of 500mm, meeting the production requirements of large-sized components.

    Winice specializes in providing integrated machining solutions, combining high-performance machining equipment with PCBN/PCD tooling. We deliver comprehensive processing solutions—from hard turning and thread whirling to induction hardening and superfinishing—for various precision components such as ball screws, planetary screws, and bearings.
