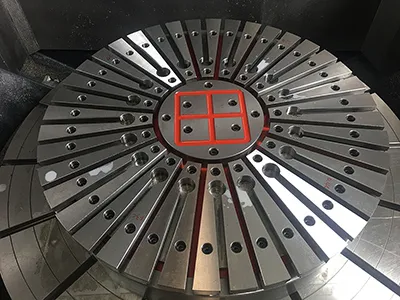

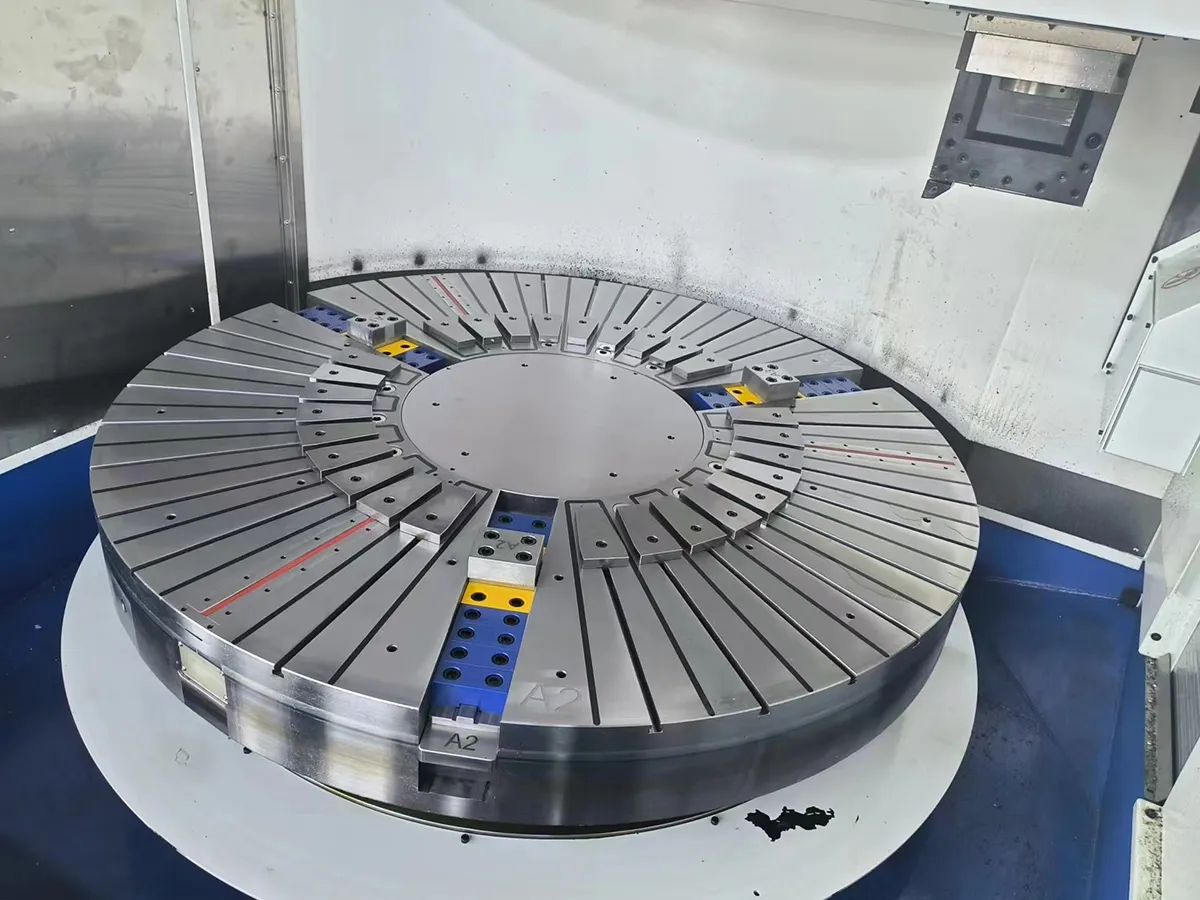

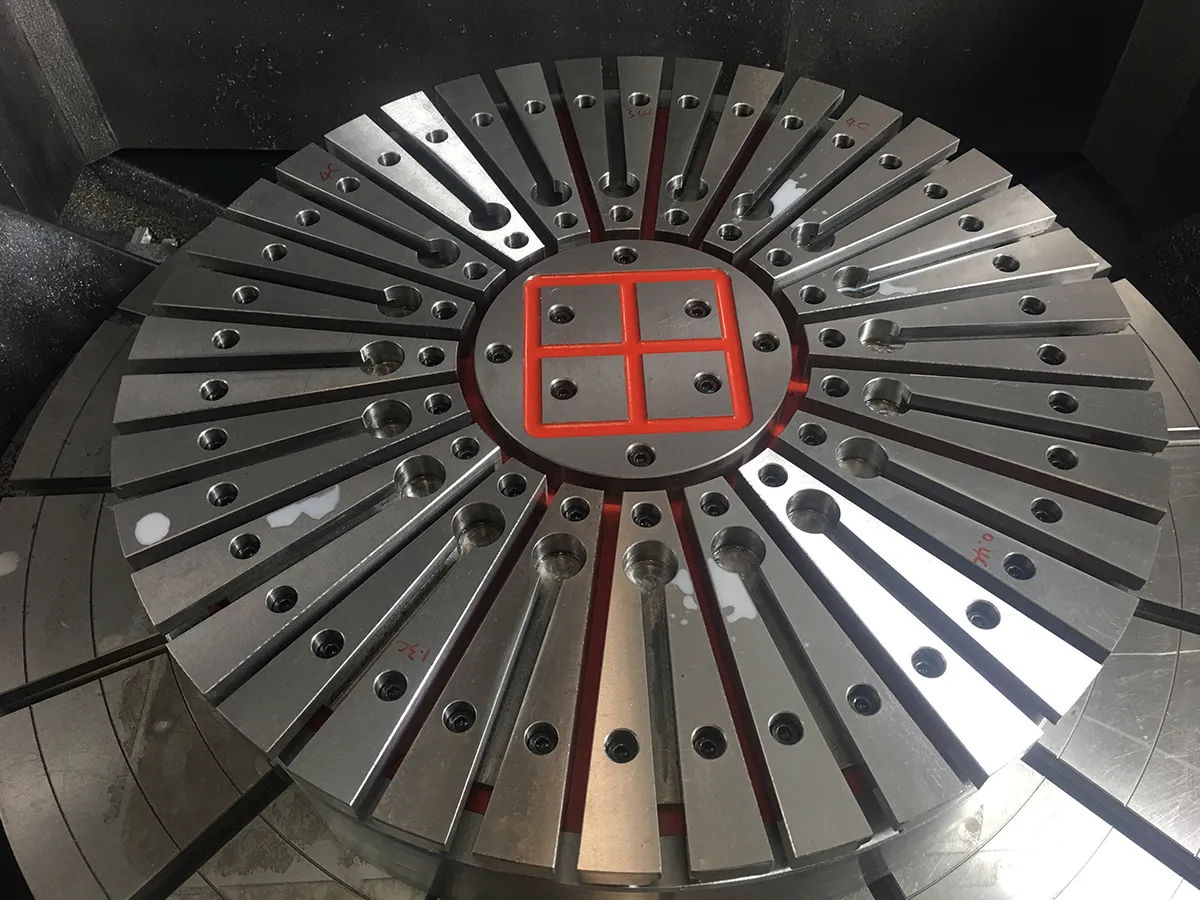

CNC electrophoretic magnetic chuck is an advanced magnetic fixture that combines the characteristics of electromagnets and permanent magnets. It utilizes electrical pulses to control the connection of the magnetic circuit. During operation, it maintains a strong magnetic force without a continuous power supply. Due to these characteristics, electrophoretic magnetic chucks are widely applied in mold processing, machining, bearing manufacturing, engineering machinery, shipbuilding, automotive manufacturing, and home appliance production.

Request a Quote
Applications
    Round bar milling and groovingRound bar milling and grooving
    Boring and contour machiningBoring and contour machining
    Bending wrought processingBending wrought processing
    Bending wrought surface processingBending wrought surface processing
    Mold processingMold processing
    Drilling and inner cavity processingDrilling and inner cavity processing
    Parts angle milling groovingParts angle milling grooving
    Top milling and side drillingTop milling and side drilling
    Track rail drillingTrack rail drilling
    Inner and outer ring and face machiningInner and outer ring and face machining
    Inner and outer ring and face grindingInner and outer ring and face grinding
    Flat high accuracy grindingFlat high accuracy grinding
Specifications
Model Width (mm) (W) Length (mm) (L) Height (mm) (H) Net Weight (kg) Number of Poles Pole Size Suction Force Per Pole
SPS50-3333 330 330 51 37 16 50*50mm 350kg
SPS50-3339 330 390 51 43 20 50*50mm 350kg
SPS50-3350 330 500 51 56 24 50*50mm 350kg
SPS50-3362 330 620 51 70 32 50*50mm 350kg
SPS50-3939 390 390 51 51 25 50*50mm 350kg
SPS50-3950 390 500 51 66 30 50*50mm 350kg
SPS50-3962 390 620 51 82 40 50*50mm 350kg
SPS50-4550 450 500 51 76.5 36 50*50mm 350kg
SPS50-4562 450 620 51 94 48 50*50mm 350kg
SPS70-4141 410 410 51 57 16 70*70mm 750kg
SPS70-4149 410 490 51 68 20 70*70mm 750kg
SPS70-4162 410 620 51 86 24 70*70mm 750kg
SPS70-4178 410 780 51 109 32 70*70mm 750kg
SPS70-4949 490 490 51 82 25 70*70mm 750kg
SPS70-4962 490 620 51 104 30 70*70mm 750kg
SPS70-4978 490 780 51 130 40 70*70mm 750kg
SPS70-5762 570 620 51 120 36 70*70mm 750kg
SPS70-5778 570 780 51 151 48 70*70mm 750kg
Features
  • Advanced electrophoretic magnetic technology provides strong and constant holding force to ensure safe and machining operation.
  • Elastic magnetic induction blocks allow for clamping without deformation during the operation.
  • The elimination of vibration facilitates multi-face machining within a single setup.
  • Complete demagnetization ensures that no residual magnetism remains on the workpiece after the cycle.
  • The electrophoretic magnetic chuck maintains a strong and constant holding force even during power failures.
  • A fully waterproof design ensures the electrophoretic magnetic chuck remains unaffected by voltage fluctuations and prevents thermal deformation.
  • Improved process optimization reduces tooling requirements, shortens productions cycles, and increases overall efficiency.
