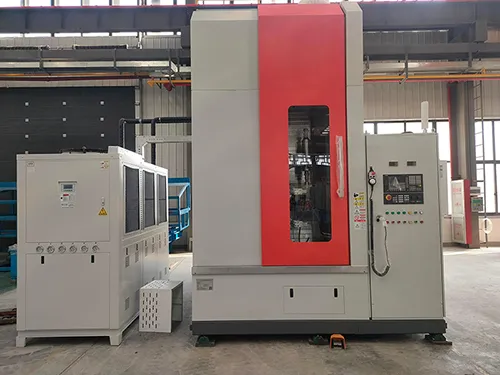

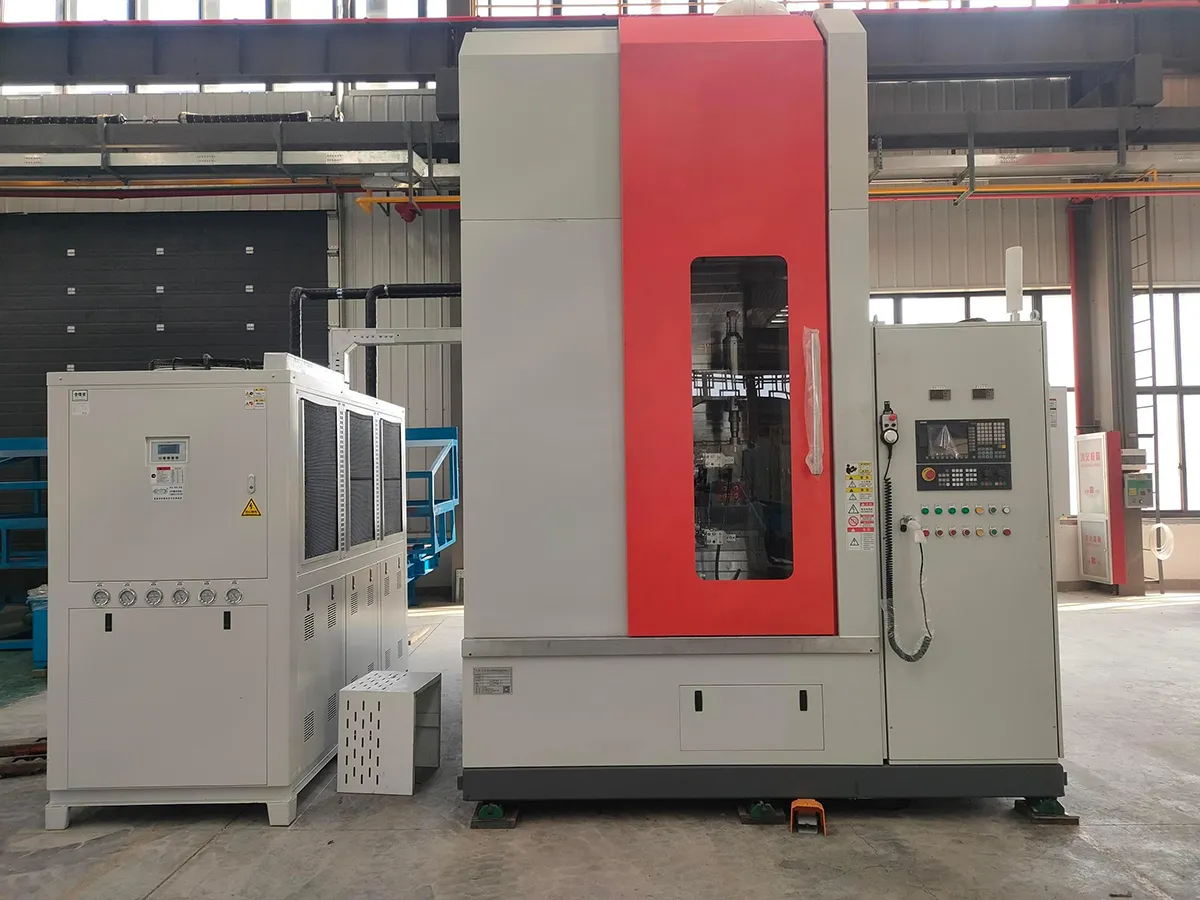

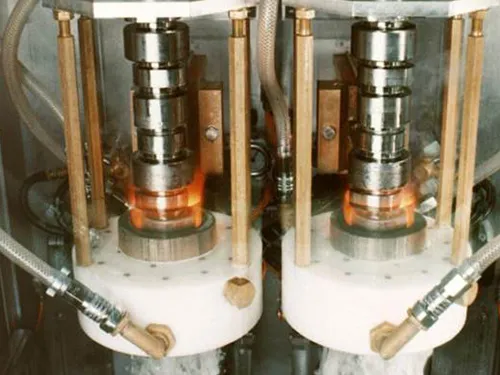

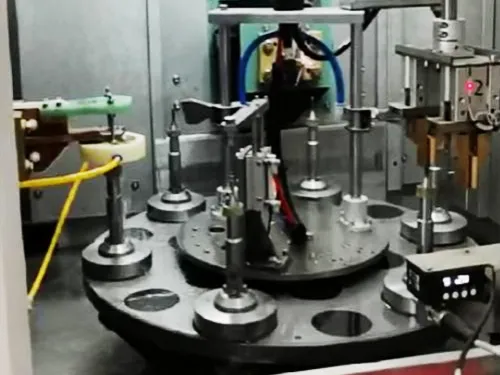

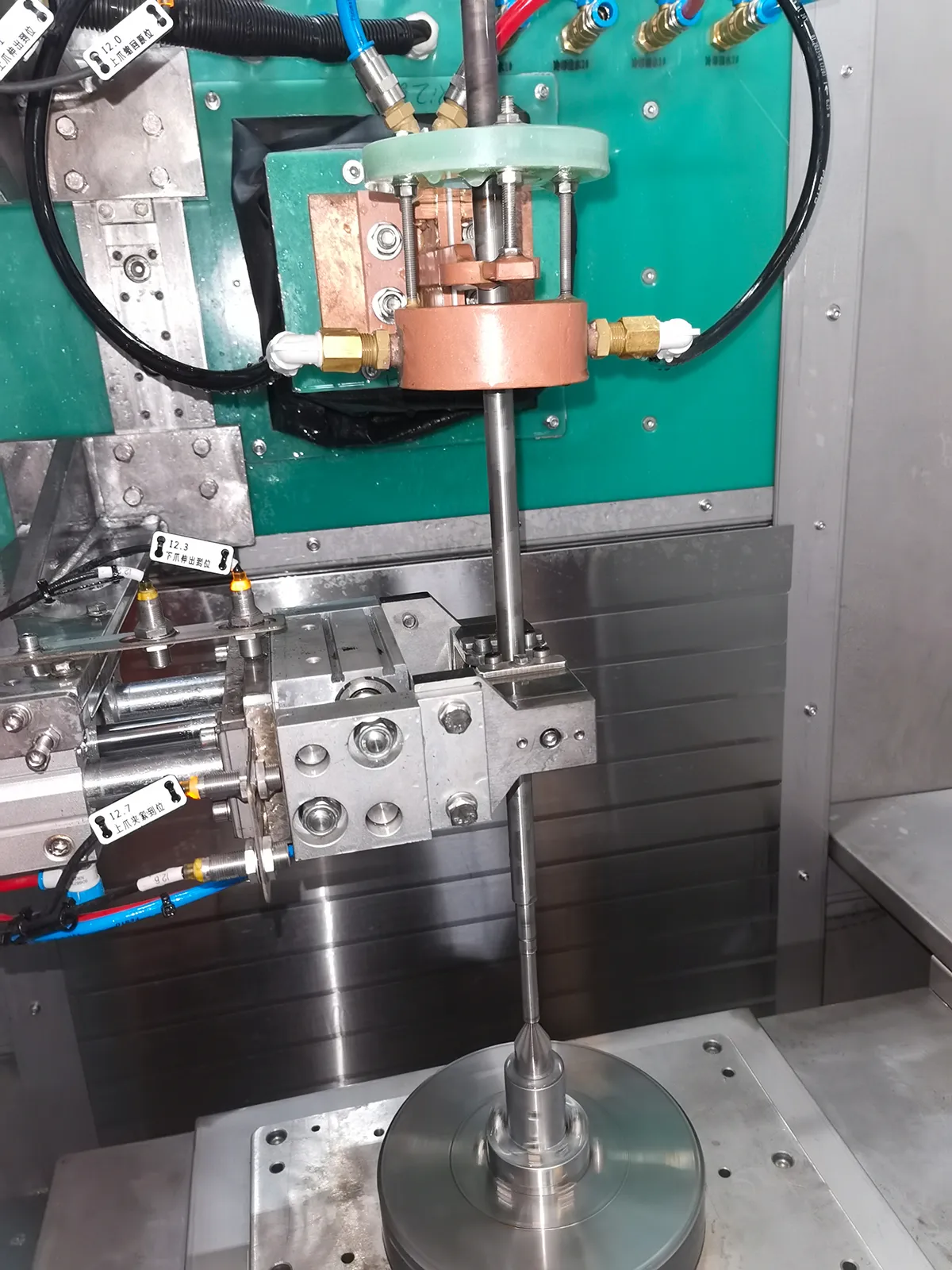

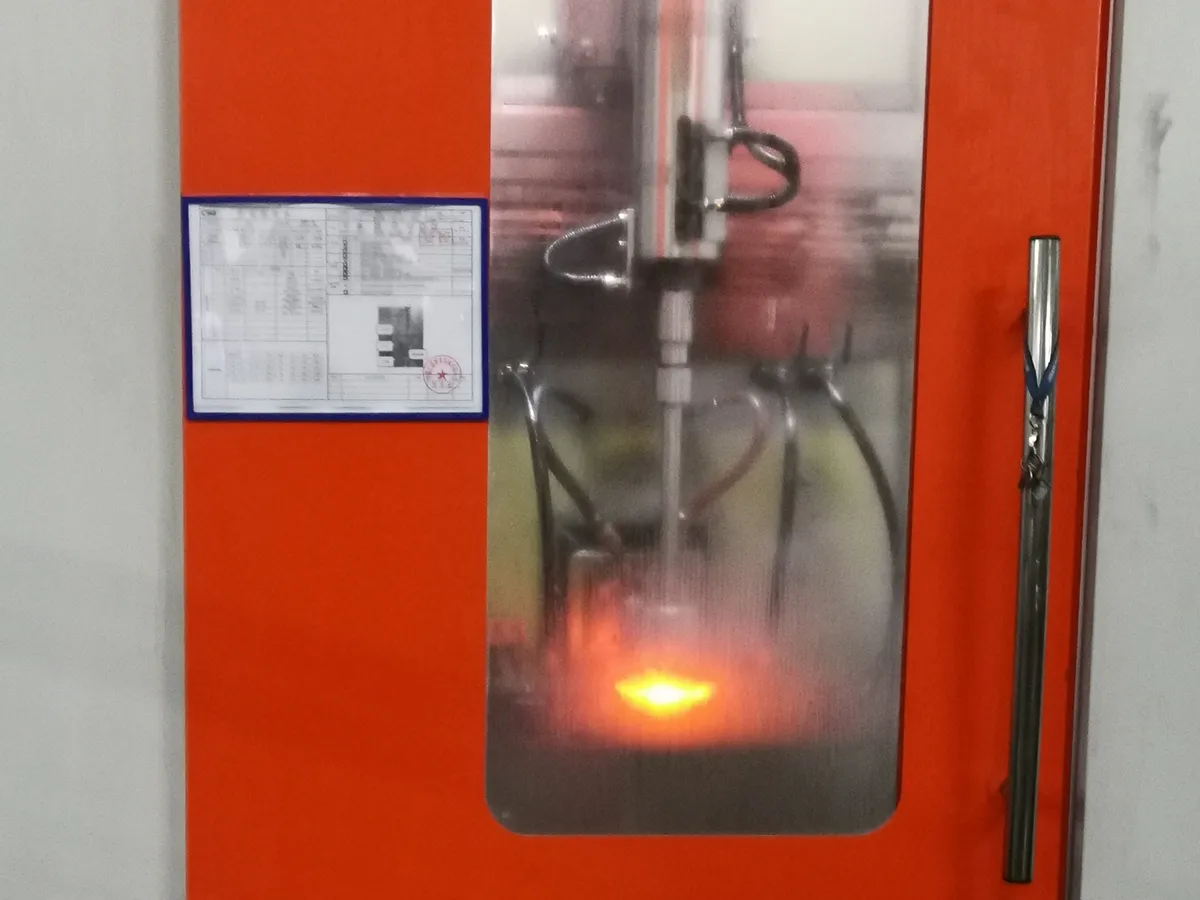

Vertical Induction Hardening Machine
The vertical induction hardening machine for planetary roller screws is a dedicated heat treatment system designed for precision long-shaft components such as planetary roller screws. Featuring a vertical configuration, it enhances the surface hardness, wear resistance, and fatigue life of roller raceways and thread surfaces through induction hardening, meeting the stringent requirements of precision transmission applications.
This hardening machine is primarily applied in industries including industrial robotics, high-end machine tools, aerospace, and new energy vehicles. It is widely used for precision hardening of planetary roller screws and high-precision ball screws, meeting C3/C5 transmission accuracy and long service life requirements.
| Model | |
|
|
| Workpiece | Lead Screw | Roller | Nut |
| Max. Length | 300mm | 300mm | 300mm |
| Max. Diameter | 30 mm | 20 mm | 60 mm |
| Input | |||
| Power | 150 kVA | 150 kVA | 200 kVA |
| Voltage | 3x380V±5%/PE | ||
| Frequency | 50Hz | ||
| Cooling Water | |||
| Water Flow | 200L/min | 200L/min | 300L/min |
| Inlet Pressure | 0.4Mpa<P<0.8Mpa | ||
| Water Temperature | 20℃-30℃ | ||
| Quenching Water | |||
| Water Flow | 50L/min | 50L/min | 50L/min |
| Inlet Pressure | 0.4Mpa<P<0.6Mpa | ||
| Water Temperature | 20℃-30℃ | ||
| Optional Functions | |||
| Automatic Loading & Unloading | * | * | * |
| Quenching Process | * | * | * |
| Tempering Process | * | * | * |
| Machine | |||
| Dimensions (W×D×H) | 2700×2800×2200 mm | 2700×2800×2200 mm | 2700×2800×2200 mm |
| Weight | 3000 kg | 3000 kg | 3500 kg |
- Superior deformation control: The vertical configuration allows self-weight sagging to offset part of the thermal deformation. Combined with shape-limiting fixtures and real-time monitoring, overall deformation is significantly lower than that of horizontal machines, making it suitable for high-precision planetary roller screws.
- Strong process adaptability: Dedicated induction coils and soft-zone-free hardening technology are designed to accommodate multi-start and multi-raceway structures of planetary roller screws, ensuring a uniform and continuous hardened layer.
- High level of automation: The hardening machine supports continuous scanning, segmented quenching, and integrated quenching and tempering processes. It delivers excellent consistency in batch production, meeting mass production requirements in industries such as automotive and robotics.
- Data-driven production monitoring: Processing data can be uploaded to the cloud for analysis, enabling real-time monitoring of the production process and improving overall manufacturing efficiency.
