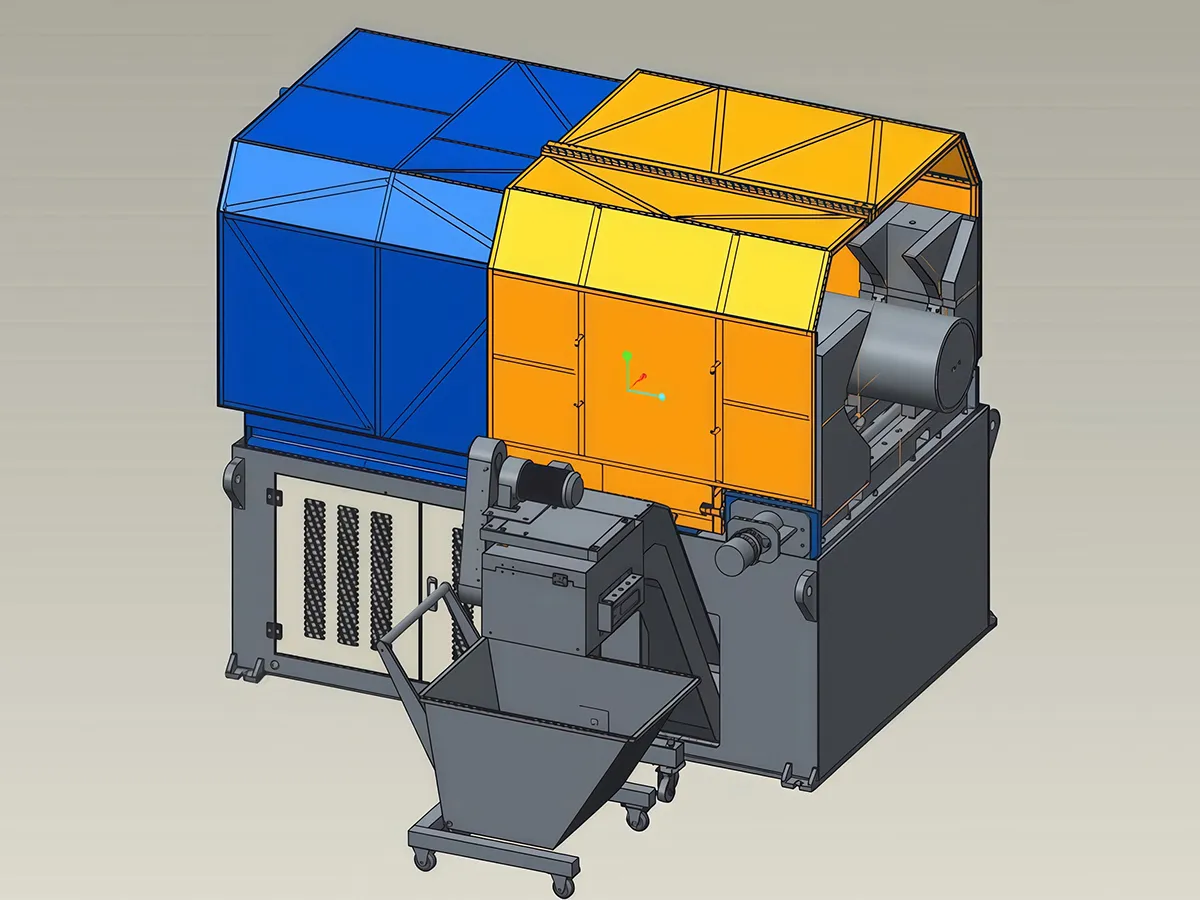

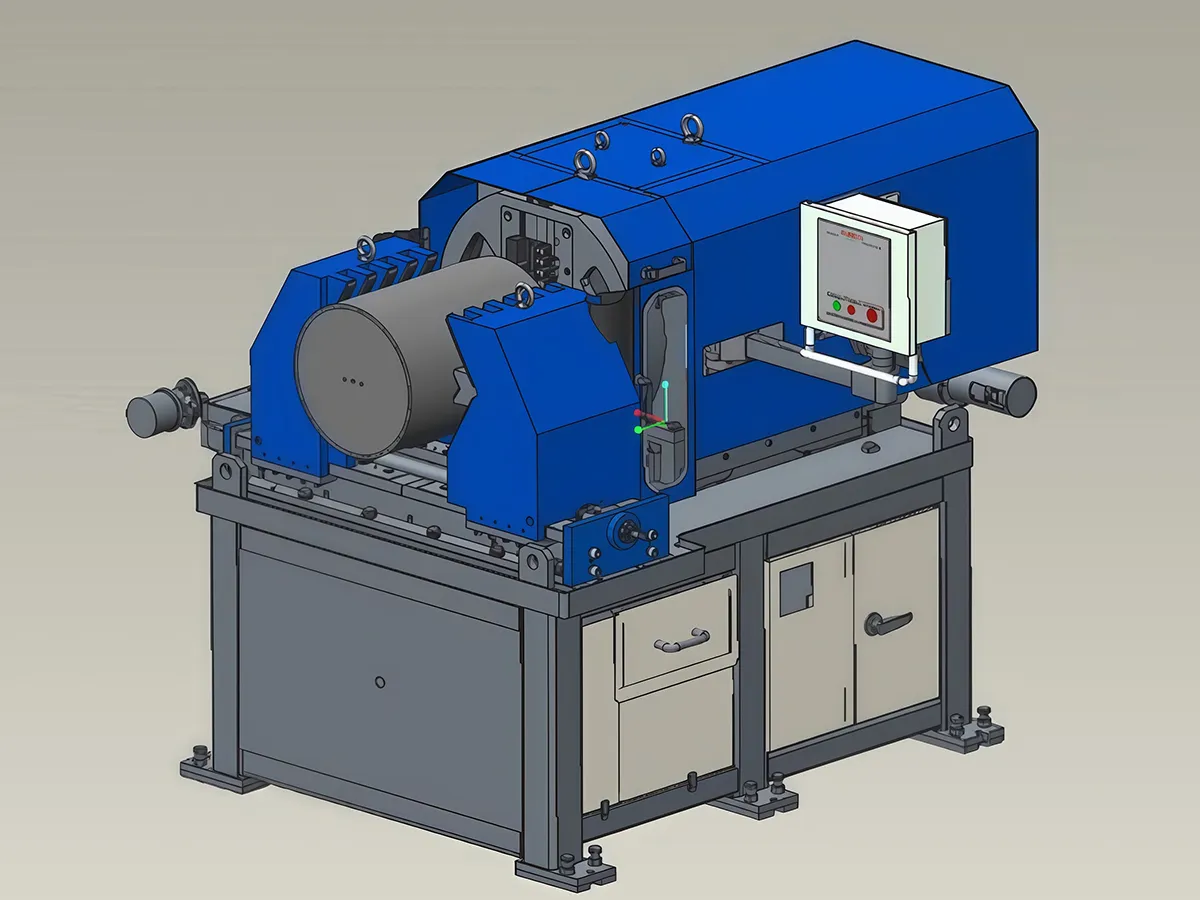

Pipe Beveling Machine

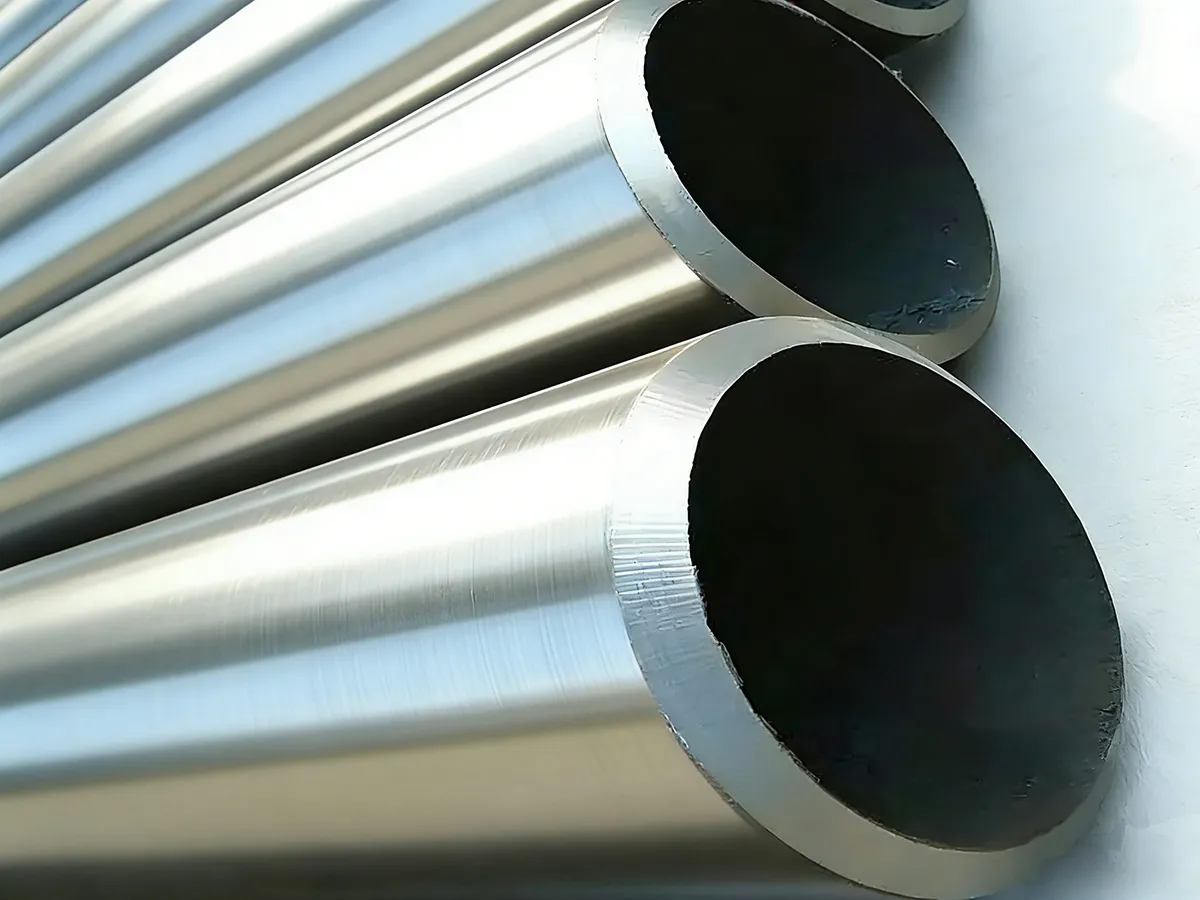

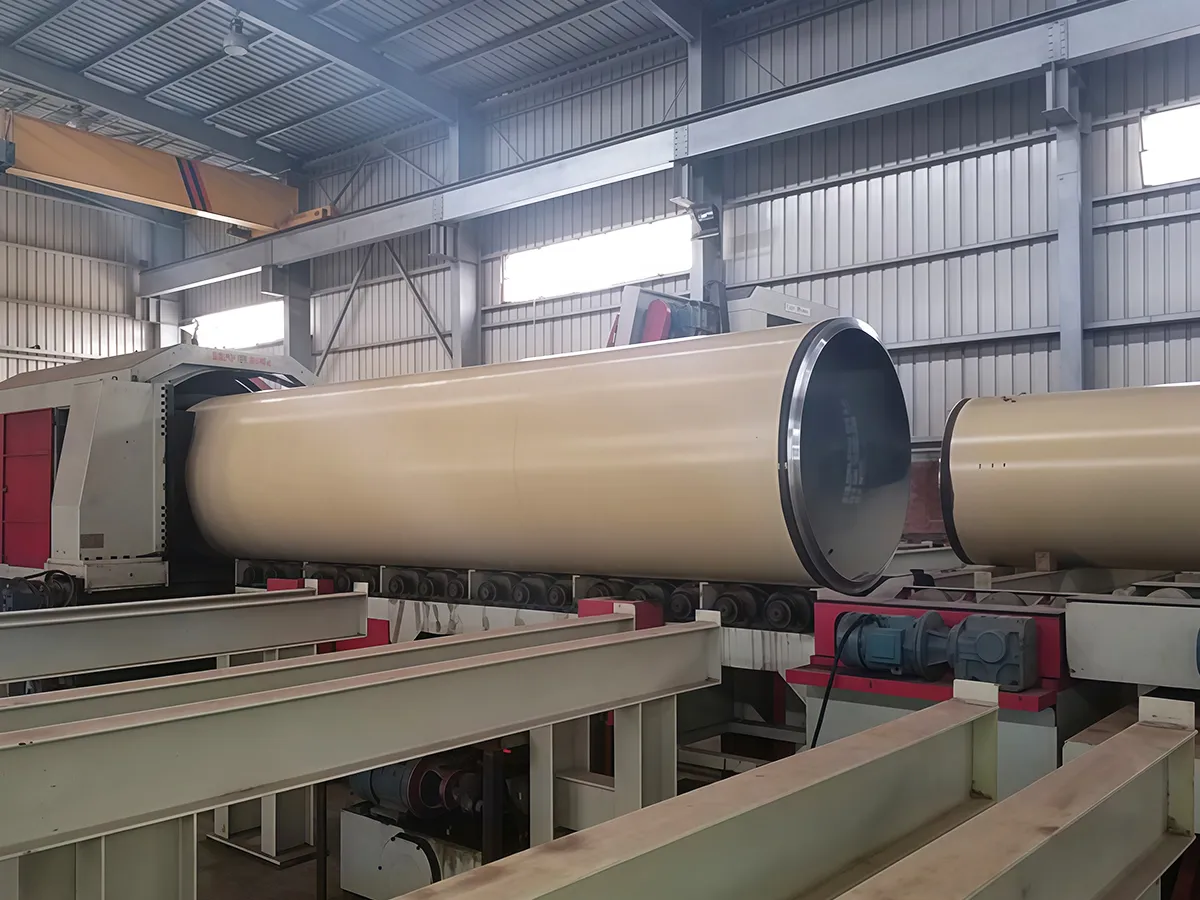

The pipe beveling machine is a specialized piece of equipment used to process specific angle bevels on the end faces or inner walls of metal pipes. Its main purpose is to ensure uniform weld penetration and meet joint strength standards during pipe welding. It is widely used in industries such as petrochemical, natural gas transportation, municipal pipelines, and shipbuilding for beveling pipes before welding.
Technical Specifications
| Model | |
|
| Applicable Pipe Material | carbon steel, stainless steel, alloy steel | carbon steel, stainless steel, alloy steel |
| Beveling Profile | Single V, Double V, U Type | Single V, Double V, U Type |
| Drive | Electric | Electric |
| Applicable Pipe Diameter | Ø305-Ø600mm | Ø600-Ø900mm |
| Applicable Pipe Wall Thickness | 10-150mm | 10-120mm |
| Pipe Clamping Method | Hydraulic clamping (automatic centering) | Hydraulic clamping (automatic centering) |
| Beveling Angle | 60-70° | 60-70° |
| Root Face Height | 1-3mm | 1-3mm |
| Automatic Feed Rate | 0.2-0.6mm/r | 0.2-0.6mm/r |
| Dimensions (L×W×H) | 2400×1400×1300mm | 2400×1700×1650mm |
Key Advantages

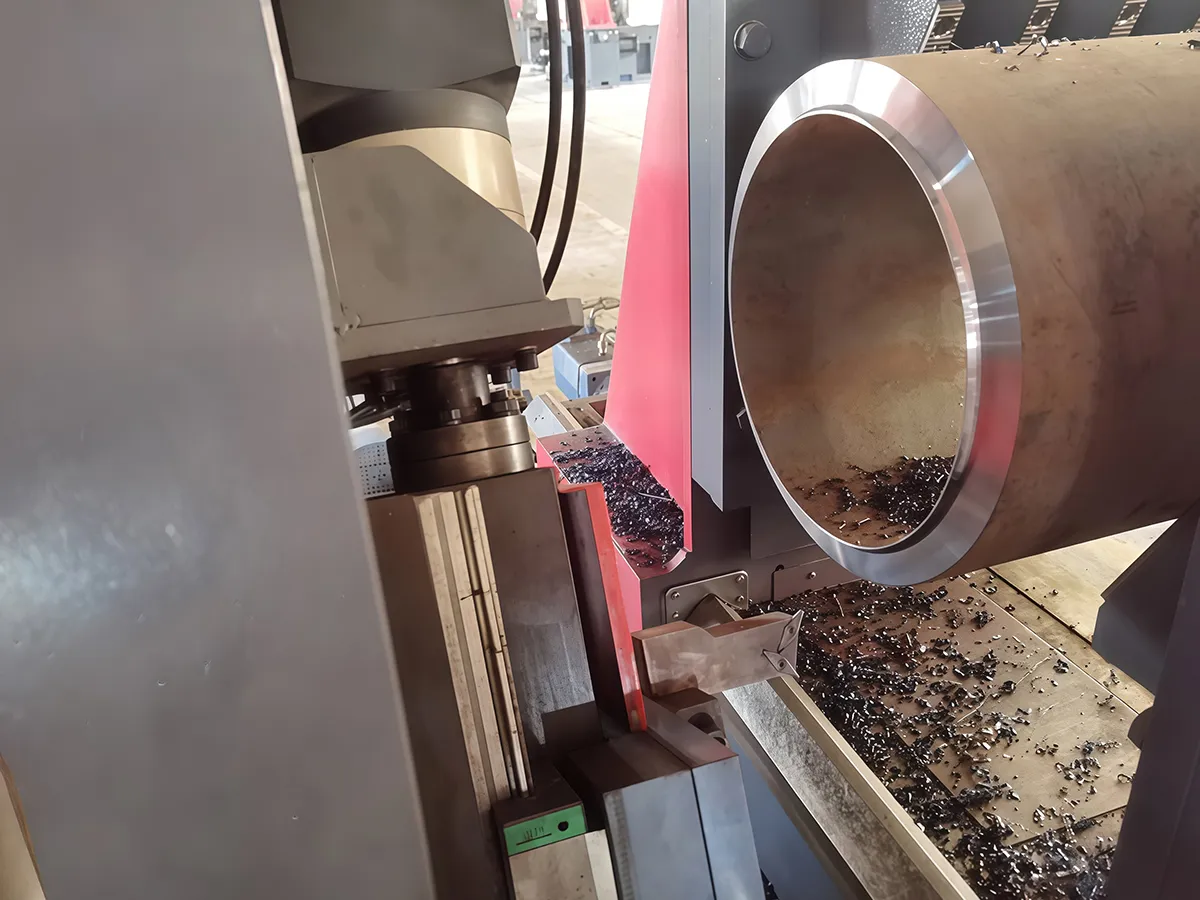

- Outstanding Machining Quality: The beveling machine primarily uses cold cutting, ensuring precise, distortion-free cuts with no heat-affected zone. The smooth, burr-free surface provides a perfect pre-treatment for high-quality welding.
- Excellent Environmental Adaptability: The design of the beveler takes field requirements into full consideration. With a portable or split design, the equipment can be taken directly to any position on the pipeline, offering strong adaptability.
- High Integration and Automation: The beveler integrates functions like cutting and beveling in one system, allowing multiple processes to be completed in a single setup. It uses an advanced integrated CNC system that can automatically perform complex beveling operations in batches via programming, with features like automatic alignment and tool feeding.
- Significant Economic Benefits: Reduces labor costs, saves auxiliary materials, and lowers overall costs.
