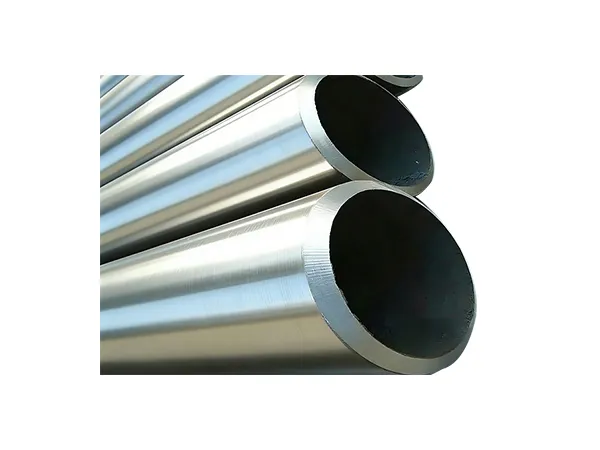

Precision Pipe Beveling & End Preparation Solutions

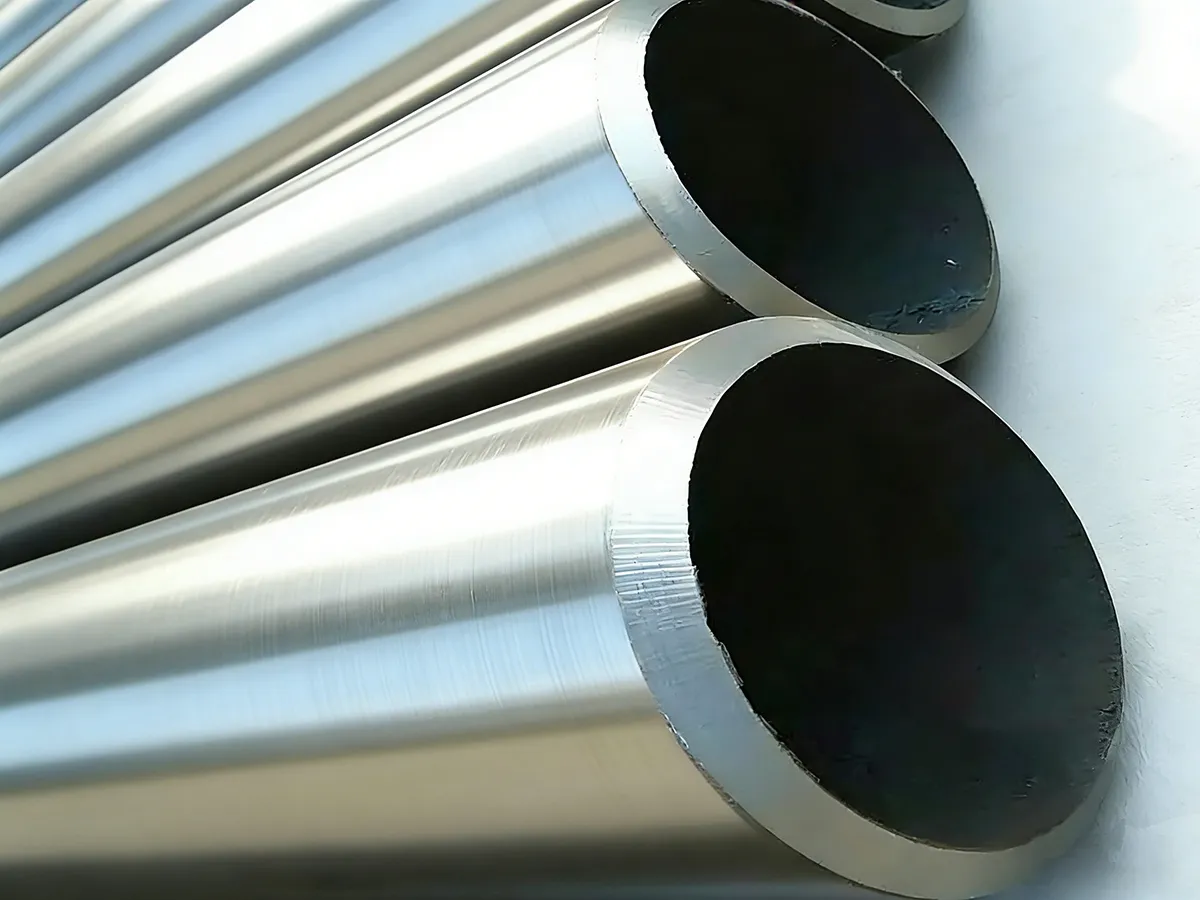

Pipe beveling is a critical pre-processing step in industrial welding. It involves machining the pipe end into a specific geometric angle to form a groove. This preparation ensures that the welding arc can penetrate deep into the root of the pipe wall, guaranteeing full weld fusion and maximizing joint strength. By creating a precise bevel, we eliminate common defects such as "lack of penetration" and "false welding," ensuring the structural integrity of the pipeline.
Widely Applied In
- Oil & Gas: Long-distance transmission pipelines.
- Industrial Systems: Chemical plants, nuclear power stations, shipbuilding, and water treatment facilities.
- Infrastructure: Urban pipe networks and municipal engineering projects.
Key Process Solutions
The Challenge
- Dimensional Control on Large Pipes: For large-diameter pipes (especially those >1 meter), maintaining geometric accuracy is difficult. Inherent ovality or uneven wall thickness often leads to inconsistent bevel angles and uneven root faces (blunt edges), making automated welding impossible.
- Material Toughness: Special materials like high-strength alloy steels and stainless steel are difficult to cut. They cause rapid tool wear and slow down production efficiency due to their high hardness and toughness.
- Surface Cleanliness: The bevel face must be bright metal—completely free of oil, oxidation, and rust. Any contamination directly compromises the quality of the final weld.
Our Solution
Recommended Equipment: Pipe Beveling Machine
- Automation: Select the appropriate CNC model based on your specific pipe diameter, wall thickness, and material.
- Self-Centering: Features robust hydraulic chucks that automatically clamp and center the pipe, correcting minor ovality.
- Efficiency: The machine performs automatic machining without the need for constant manual supervision, delivering a perfectly machined surface ready for welding.

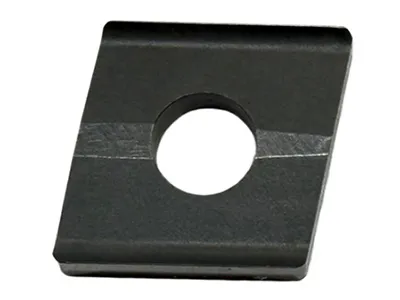

Recommended Cutting Tools: Pipe Beveling Tools
- Versatility: We offer specialized inserts for various bevel geometries, including V-type, X-type, and U-type grooves.
- Material Matching: Choose from premium carbide or diamond (PCD) tools tailored to the pipe material, ensuring long tool life even when machining high-alloy steels.
