CCGW DCGW TCGW TPGW VBGW VCGW

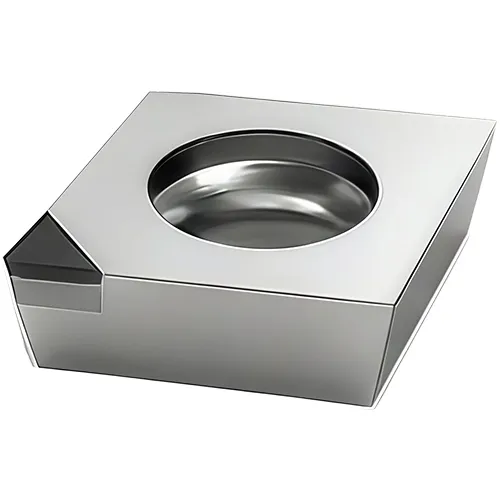

PCD Tools, CCGW
PCD Tools, CCGW
PCD Tools, CCGW

PCD Tools, CCGW

(PCD Turning Tool, PCD Milling Tool, PCD Boring Tool, PCD Grooving Tool, PCD Threading Tool)
Request a Quote
Technical Specifications
ISO Code ANSI Code Tips Edge Length Hole Diameter Thickness Rake Nose Radius Tip Length

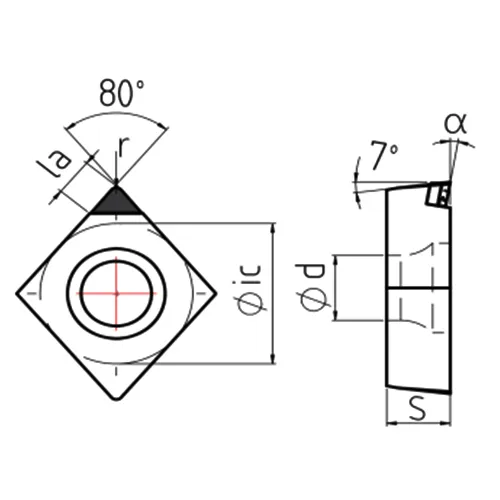

ic Ød s α r la
CCGW060202 CCGW2(1.5)(0.5) 1N 6.35 2.8 2.38 0° 0.2 2.5
CCGT060202 CCGT2(1.5)(0.5) 1N 6.35 2.8 2.38 5° 0.2 2.5
CCGT060202 CCGT2(1.5)(0.5) 1N 6.35 2.8 2.38 10° 0.2 2.5
CCGW060204 CCGW2(1.5)1 1N 6.35 2.8 2.38 0° 0.4 2.5
CCGT060204 CCGT2(1.5)1 1N 6.35 2.8 2.38 5° 0.4 2.5
CCGT060204 CCGT2(1.5)1 1N 6.35 2.8 2.38 10° 0.4 2.5
CCGW060202 CCGW2(1.5)(0.5) 2N 6.35 2.8 2.38 0° 0.2 2.5
CCGT060202 CCGT2(1.5)(0.5) 2N 6.35 2.8 2.38 5° 0.2 2.5
CCGT060202 CCGT2(1.5)(0.5) 2N 6.35 2.8 2.38 10° 0.2 2.5
CCGW060204 CCGW2(1.5)1 2N 6.35 2.8 2.38 0° 0.4 2.5
CCGT060204 CCGT2(1.5)1 2N 6.35 2.8 2.38 5° 0.4 2.5
CCGT060204 CCGT2(1.5)1 2N 6.35 2.8 2.38 10° 0.4 2.5
CCGW09T302 CCGW3(2.5)(0.5) 1N 9.525 4.4 3.97 0° 0.2 2.5
CCGT09T302 CCGT3(2.5)(0.5) 1N 9.525 4.4 3.97 5° 0.2 2.5
CCGT09T302 CCGT3(2.5)(0.5) 1N 9.525 4.4 3.97 10° 0.2 2.5
CCGW09T304 CCGW3(2.5)1 1N 9.525 4.4 3.97 0° 0.4 2.5
CCGT09T304 CCGT3(2.5)1 1N 9.525 4.4 3.97 5° 0.4 2.5
CCGT09T304 CCGT3(2.5)1 1N 9.525 4.4 3.97 10° 0.4 2.5
CCGW09T308 CCGW3(2.5)2 1N 9.525 4.4 3.97 0° 0.8 2.5
CCGT09T308 CCGT3(2.5)2 1N 9.525 4.4 3.97 5° 0.8 2.5
CCGT09T308 CCGT3(2.5)2 1N 9.525 4.4 3.97 10° 0.8 2.5
CCGW09T302 CCGW3(2.5)(0.5) 2N 9.525 4.4 3.97 0° 0.2 2.5
CCGT09T302 CCGT3(2.5)(0.5) 2N 9.525 4.4 3.97 5° 0.2 2.5
CCGT09T302 CCGT3(2.5)(0.5) 2N 9.525 4.4 3.97 10° 0.2 2.5
CCGW09T304 CCGW3(2.5)1 2N 9.525 4.4 3.97 0° 0.4 2.5
CCGT09T304 CCGT3(2.5)1 2N 9.525 4.4 3.97 5° 0.4 2.5
CCGT09T304 CCGT3(2.5)1 2N 9.525 4.4 3.97 10° 0.4 2.5
CCGW09T308 CCGW3(2.5)2 2N 9.525 4.4 3.97 0° 0.8 2.5
CCGW09T308 CCGT3(2.5)2 2N 9.525 4.4 3.97 5° 0.8 2.5
CCGW09T308 CCGT3(2.5)2 2N 9.525 4.4 3.97 10° 0.8 2.5
CCGW120402 CCGW43(0.5) 1N 12.7 5.5 4.76 0° 0.2 2.5
CCGT120402 CCGT43(0.5) 1N 12.7 5.5 4.76 5° 0.2 2.5
CCGT120402 CCGT43(0.5) 1N 12.7 5.5 4.76 10° 0.2 2.5
CCGW120404 CCGW431 1N 12.7 5.5 4.76 0° 0.4 2.5
CCGT120404 CCGT431 1N 12.7 5.5 4.76 5° 0.4 2.5
CCGT120404 CCGT431 1N 12.7 5.5 4.76 10° 0.4 2.5
CCGW120408 CCGW432 1N 12.7 5.5 4.76 0° 0.8 2.5
CCGT120408 CCGT432 1N 12.7 5.5 4.76 5° 0.8 2.5
CCGT120408 CCGT432 1N 12.7 5.5 4.76 10° 0.8 2.5
CCGW120402 CCGW43(0.5) 2N 12.7 5.5 4.76 0° 0.2 2.5
CCGT120402 CCGT43(0.5) 2N 12.7 5.5 4.76 5° 0.2 2.5
CCGT120402 CCGT43(0.5) 2N 12.7 5.5 4.76 10° 0.2 2.5
CCGW120404 CCGW431 2N 12.7 5.5 4.76 0° 0.4 2.5
CCGT120404 CCGT431 2N 12.7 5.5 4.76 5° 0.4 2.5
CCGT120404 CCGT431 2N 12.7 5.5 4.76 10° 0.4 2.5
CCGW120408 CCGW432 2N 12.7 5.5 4.76 0° 0.8 2.5
CCGT120408 CCGT432 2N 12.7 5.5 4.76 5° 0.8 2.5
CCGT120408 CCGT432 2N 12.7 5.5 4.76 10° 0.8 2.5
PCD Grades & Cutting Parameters
Cutting Recommendation Nonferrous Metals
PCD Grade PD10 PD20 PD30
Workpiece Material Aluminum alloy Low-silicon aluminum alloy High-silicon aluminum alloy
Cutting Speed (Vc) 750(500-1000) m/min 500 (300-800) m/min 350 (200-500) m/min
Feed per Revolution (Fn) 0.15(0.03-0.3) mm/r 0.15 (0.03-0.3) mm/r 0.15(0.03-0.3) mm/r
PCD Grade Comparison
Class Winice Tungaloy Mitsubishi Sumitomo Sandvik Kyocera Hitachi Dijet NTK Seco Kennametal Iscar Taegutec Widia Walter Ceratizit Centech
-EG 		ZCC.CT
N N10 PD10 DX140 MD205
MD220 		DA150 CD10 KPD001
KPD010
KPD230 		JDA715 PD1 PCD05
PCD10
PCD20 		KD100
KD1400
KD1425 		ID5 KP500 WDN25U WCD10 CTD4125
CTD4110 		MD02 DN1011
DN0511
N20 PD20 DX120 MD220
MD230 		DA2200
DA1000 		CD10 KPD001
KPD010
KPD230 		JDA715 PD1 PCD05
PCD20 		KD1425 ID8 KP300 WDN25U WCD10 CTD4205 MD04
MD03 		DN1031
N30 PD30 DX110 MD230 DA2200
DA1000 		JDA10 PCD20
PCD30
PCD30M 		ID8 KP100 MD01 DN3021
Recommended Machining Equipment

Winice specializes in providing integrated machining solutions, combining high-performance machining equipment with PCBN/PCD tooling. We deliver comprehensive processing solutions—from hard turning and thread whirling to induction hardening and superfinishing—for various precision components such as ball screws, planetary screws, and bearings.
