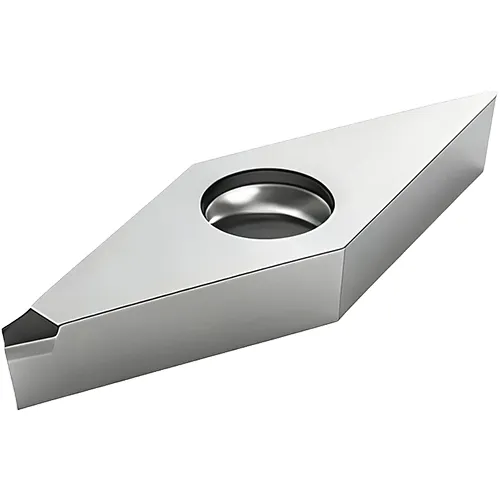

CCGW DCGW TCGW TPGW VBGW VCGW
PCD Tools, VBGW
PCD Tools, VBGW
PCD Tools, VBGW

PCD Tools, VBGW

(PCD Turning Tool, PCD Milling Tool, PCD Boring Tool, PCD Grooving Tool, PCD Threading Tool)
Request a Quote
Technical Specifications
ISO Code ANSI Code Tips Edge Length Hole Diameter Thickness Rake Nose Radius Tip Length

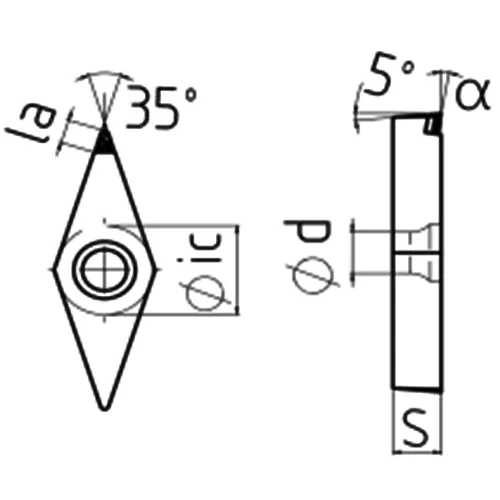

ic Ød s α r la
VBGW110302 VBGW22(0.5) 1N 6.35 2.8 3.18 0° 0.2 2.5
VBGT110302 VBGT22(0.5) 1N 6.35 2.8 3.18 5° 0.2 2.5
VBGT110302 VBGT22(0.5) 1N 6.35 2.8 3.18 10° 0.2 2.5
VBGW110304 VBGW221 1N 6.35 2.8 3.18 0° 0.4 2.5
VBGT110304 VBGT221 1N 6.35 2.8 3.18 5° 0.4 2.5
VBGT110304 VBGT221 1N 6.35 2.8 3.18 10° 0.4 2.5
VBGW110308 VBGW222 1N 6.35 2.8 3.18 0° 0.8 2.5
VBGT110308 VBGT222 1N 6.35 2.8 3.18 5° 0.8 2.5
VBGT110308 VBGT222 1N 6.35 2.8 3.18 10° 0.8 2.5
VBGW110302 VBGW22(0.5) 2N 6.35 2.8 3.18 0° 0.2 2.5
VBGT110302 VBGT22(0.5) 2N 6.35 2.8 3.18 5° 0.2 2.5
VBGT110302 VBGT22(0.5) 2N 6.35 2.8 3.18 10° 0.2 2.5
VBGW110304 VBGW221 2N 6.35 2.8 3.18 0° 0.4 2.5
VBGT110304 VBGW221 2N 6.35 2.8 3.18 5° 0.4 2.5
VBGT110304 VBGW221 2N 6.35 2.8 3.18 10° 0.4 2.5
VBGW110308 VBGW222 2N 6.35 2.8 3.18 0° 0.8 2.5
VBGT110308 VBGT222 2N 6.35 2.8 3.18 5° 0.8 2.5
VBGT110308 VBGT222 2N 6.35 2.8 3.18 10° 0.8 2.5
VBGW160402 VBGW33(0.5) 1N 9.525 4.4 4.76 0° 0.2 2.5
VBGT160402 VBGT33(0.5) 1N 9.525 4.4 4.76 5° 0.2 2.5
VBGT160402 VBGT33(0.5) 1N 9.525 4.4 4.76 10° 0.2 2.5
VBGW160404 VBGW331 1N 9.525 4.4 4.76 0° 0.4 2.5
VBGT160404 VBGT331 1N 9.525 4.4 4.76 5° 0.4 2.5
VBGT160404 VBGT331 1N 9.525 4.4 4.76 10° 0.4 2.5
VBGW160408 VBGW332 1N 9.525 4.4 4.76 0° 0.8 2.5
VBGT160408 VBGT332 1N 9.525 4.4 4.76 5° 0.8 2.5
VBGT160408 VBGT332 1N 9.525 4.4 4.76 10° 0.8 2.5
VBGW160402 VBGW33(0.5) 2N 9.525 4.4 4.76 0° 0.2 2.5
VBGT160402 VBGT33(0.5) 2N 9.525 4.4 4.76 5° 0.2 2.5
VBGT160402 VBGT33(0.5) 2N 9.525 4.4 4.76 10° 0.2 2.5
VBGW160404 VBGW331 2N 9.525 4.4 4.76 0° 0.4 2.5
VBGT160404 VBGT331 2N 9.525 4.4 4.76 5° 0.4 2.5
VBGT160404 VBGT331 2N 9.525 4.4 4.76 10° 0.4 2.5
VBGW160408 VBGW332 2N 9.525 4.4 4.76 0° 0.8 2.5
VBGT160408 VBGT331 2N 9.525 4.4 4.76 5° 0.8 2.5
VBGT160408 VBGT331 2N 9.525 4.4 4.76 10° 0.8 2.5
PCD Grades & Cutting Parameters
Cutting Recommendation Nonferrous Metals
PCD Grade PD10 PD20 PD30
Workpiece Material Aluminum alloy Low-silicon aluminum alloy High-silicon aluminum alloy
Cutting Speed (Vc) 750(500-1000) m/min 500 (300-800) m/min 350 (200-500) m/min
Feed per Revolution (Fn) 0.15(0.03-0.3) mm/r 0.15 (0.03-0.3) mm/r 0.15(0.03-0.3) mm/r
PCD Grade Comparison
Class Winice Tungaloy Mitsubishi Sumitomo Sandvik Kyocera Hitachi Dijet NTK Seco Kennametal Iscar Taegutec Widia Walter Ceratizit Centech
-EG 		ZCC.CT
N N10 PD10 DX140 MD205
MD220 		DA150 CD10 KPD001
KPD010
KPD230 		JDA715 PD1 PCD05
PCD10
PCD20 		KD100
KD1400
KD1425 		ID5 KP500 WDN25U WCD10 CTD4125
CTD4110 		MD02 DN1011
DN0511
N20 PD20 DX120 MD220
MD230 		DA2200
DA1000 		CD10 KPD001
KPD010
KPD230 		JDA715 PD1 PCD05
PCD20 		KD1425 ID8 KP300 WDN25U WCD10 CTD4205 MD04
MD03 		DN1031
N30 PD30 DX110 MD230 DA2200
DA1000 		JDA10 PCD20
PCD30
PCD30M 		ID8 KP100 MD01 DN3021
Recommended Machining Equipment

Winice specializes in providing integrated machining solutions, combining high-performance machining equipment with PCBN/PCD tooling. We deliver comprehensive processing solutions—from hard turning and thread whirling to induction hardening and superfinishing—for various precision components such as ball screws, planetary screws, and bearings.
