CCGW DCGW TCGW TPGW VBGW VCGW

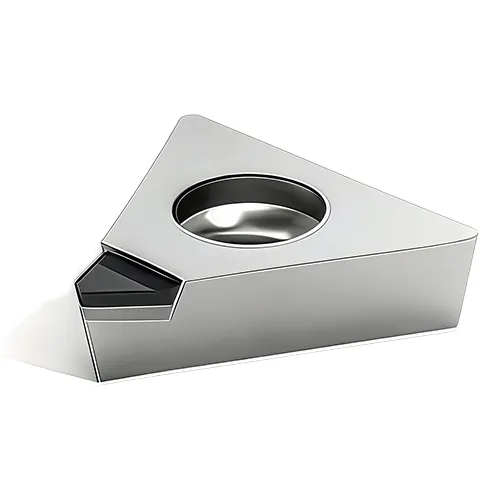

PCD Tools, TCGW

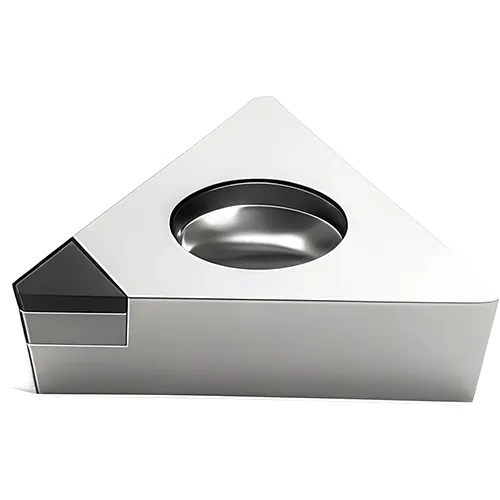

PCD Tools, TCGW
PCD Tools, TCGW

PCD Tools, TCGW

(PCD Turning Tool, PCD Milling Tool, PCD Boring Tool, PCD Grooving Tool, PCD Threading Tool)
Request a Quote
Technical Specifications
ISO Code ANSI Code Tips Edge Length Hole Diameter Thickness Rake Nose Radius Tip Length

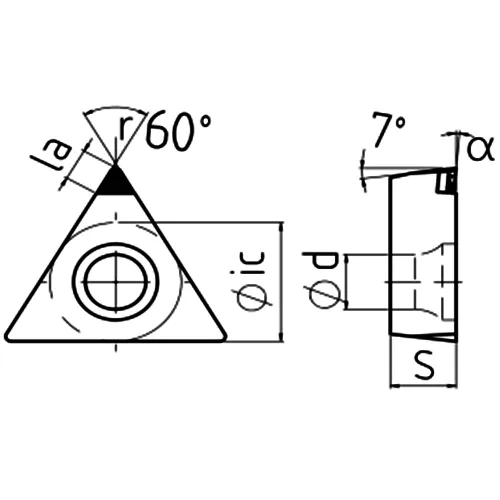

ic Ød s α r la
TCGW080202 TCGW(1.5)(1.5)(0.5) 1N 4.76 2.4 2.38 0° 0.2 2.5
TCGT080202 TCGT(1.5)(1.5)(0.5) 1N 4.76 2.4 2.38 5° 0.2 2.5
TCGT080202 TCGT(1.5)(1.5)(0.5) 1N 4.76 2.4 2.38 10° 0.2 2.5
TCGW080204 TCGW(1.5)(1.5)1 1N 4.76 2.4 2.38 0° 0.4 2.5
TCGT080204 TCGT(1.5)(1.5)1 1N 4.76 2.4 2.38 5° 0.4 2.5
TCGT080204 TCGT(1.5)(1.5)1 1N 4.76 2.4 2.38 10° 0.4 2.5
TCGW080208 TCGW(1.5)(1.5)2 1N 4.76 2.4 2.38 0° 0.8 2.5
TCGT080208 TCGT(1.5)(1.5)2 1N 4.76 2.4 2.38 5° 0.8 2.5
TCGT080208 TCGT(1.5)(1.5)2 1N 4.76 2.4 2.38 10° 0.8 2.5
TCGW110302 TCGW22(0.5) 1N 6.35 2.8 3.18 0° 0.2 2.5
TCGT110302 TCGT22(0.5) 1N 6.35 2.8 3.18 5° 0.2 2.5
TCGT110302 TCGT22(0.5) 1N 6.35 2.8 3.18 10° 0.2 2.5
TCGW110304 TCGW221 1N 6.35 2.8 3.18 0° 0.4 2.5
TCGT110304 TCGT221 1N 6.35 2.8 3.18 5° 0.4 2.5
TCGT110304 TCGT221 1N 6.35 2.8 3.18 10° 0.4 2.5
TCGW110308 TCGW222 1N 6.35 2.8 3.18 0° 0.8 2.5
TCGT110308 TCGT222 1N 6.35 2.8 3.18 5° 0.8 2.5
TCGT110308 TCGT222 1N 6.35 2.8 3.18 10° 0.8 2.5
TCGW160402 TCGW33(0.5) 1N 9.525 4.4 4.76 0° 0.2 2.5
TCGT160402 TCGT33(0.5) 1N 9.525 4.4 4.76 5° 0.2 2.5
TCGT160402 TCGT33(0.5) 1N 9.525 4.4 4.76 10° 0.2 2.5
TCGW160404 TCGW331 1N 9.525 4.4 4.76 0° 0.4 2.5
TCGT160404 TCGT331 1N 9.525 4.4 4.76 5° 0.4 2.5
TCGT160404 TCGT331 1N 9.525 4.4 4.76 10° 0.4 2.5
TCGW160408 TCGW332 1N 9.525 4.4 4.76 0° 0.8 2.5
TCGT160408 TCGT332 1N 9.525 4.4 4.76 5° 0.8 2.5
TCGT160408 TCGT332 1N 9.525 4.4 4.76 10° 0.8 2.5
TCGW080202 TCGW(1.5)(1.5)(0.5) 3N 4.76 2.4 2.38 0° 0.2 2.5
TCGT080202 TCGT(1.5)(1.5)(0.5) 3N 4.76 2.4 2.38 5° 0.2 2.5
TCGT080202 TCGT(1.5)(1.5)(0.5) 3N 4.76 2.4 2.38 10° 0.2 2.5
TCGW080204 TCGW(1.5)(1.5)1 3N 4.76 2.4 2.38 0° 0.4 2.5
TCGT080204 TCGT(1.5)(1.5)1 3N 4.76 2.4 2.38 5° 0.4 2.5
TCGT080204 TCGT(1.5)(1.5)1 3N 4.76 2.4 2.38 10° 0.4 2.5
TCGW080208 TCGW(1.5)(1.5)2 3N 4.76 2.4 2.38 0° 0.8 2.5
TCGT080208 TCGT(1.5)(1.5)2 3N 4.76 2.4 2.38 5° 0.8 2.5
TCGT080208 TCGT(1.5)(1.5)2 3N 4.76 2.4 2.38 10° 0.8 2.5
TCGW110302 TCGW22(0.5) 3N 6.35 2.8 3.18 0° 0.2 2.5
TCGT110302 TCGT22(0.5) 3N 6.35 2.8 3.18 5° 0.2 2.5
TCGT110302 TCGT22(0.5) 3N 6.35 2.8 3.18 10° 0.2 2.5
TCGW110304 TCGW221 3N 6.35 2.8 3.18 0° 0.4 2.5
TCGT110304 TCGT221 3N 6.35 2.8 3.18 5° 0.4 2.5
TCGT110304 TCGT221 3N 6.35 2.8 3.18 10° 0.4 2.5
TCGW110308 TCGW222 3N 6.35 2.8 3.18 0° 0.8 2.5
TCGT110308 TCGT222 3N 6.35 2.8 3.18 5° 0.8 2.5
TCGT110308 TCGT222 3N 6.35 2.8 3.18 10° 0.8 2.5
TCGW160402 TCGW33(0.5) 3N 9.525 4.4 4.76 0° 0.2 2.5
TCGT160402 TCGT33(0.5) 3N 9.525 4.4 4.76 5° 0.2 2.5
TCGT160402 TCGT33(0.5) 3N 9.525 4.4 4.76 10° 0.2 2.5
TCGW160404 TCGW331 3N 9.525 4.4 4.76 0° 0.4 2.5
TCGT160404 TCGT331 3N 9.525 4.4 4.76 5° 0.4 2.5
TCGT160404 TCGT331 3N 9.525 4.4 4.76 10° 0.4 2.5
TCGW160408 TCGW332 3N 9.525 4.4 4.76 0° 0.8 2.5
TCGT160408 TCGT332 3N 9.525 4.4 4.76 5° 0.8 2.5
TCGT160408 TCGT332 3N 9.525 4.4 4.76 10° 0.8 2.5
PCD Grades & Cutting Parameters
Cutting Recommendation Nonferrous Metals
PCD Grade PD10 PD20 PD30
Workpiece Material Aluminum alloy Low-silicon aluminum alloy High-silicon aluminum alloy
Cutting Speed (Vc) 750(500-1000) m/min 500 (300-800) m/min 350 (200-500) m/min
Feed per Revolution (Fn) 0.15(0.03-0.3) mm/r 0.15 (0.03-0.3) mm/r 0.15(0.03-0.3) mm/r
PCD Grade Comparison
Class Winice Tungaloy Mitsubishi Sumitomo Sandvik Kyocera Hitachi Dijet NTK Seco Kennametal Iscar Taegutec Widia Walter Ceratizit Centech
-EG 		ZCC.CT
N N10 PD10 DX140 MD205
MD220 		DA150 CD10 KPD001
KPD010
KPD230 		JDA715 PD1 PCD05
PCD10
PCD20 		KD100
KD1400
KD1425 		ID5 KP500 WDN25U WCD10 CTD4125
CTD4110 		MD02 DN1011
DN0511
N20 PD20 DX120 MD220
MD230 		DA2200
DA1000 		CD10 KPD001
KPD010
KPD230 		JDA715 PD1 PCD05
PCD20 		KD1425 ID8 KP300 WDN25U WCD10 CTD4205 MD04
MD03 		DN1031
N30 PD30 DX110 MD230 DA2200
DA1000 		JDA10 PCD20
PCD30
PCD30M 		ID8 KP100 MD01 DN3021
Recommended Machining Equipment

Winice specializes in providing integrated machining solutions, combining high-performance machining equipment with PCBN/PCD tooling. We deliver comprehensive processing solutions—from hard turning and thread whirling to induction hardening and superfinishing—for various precision components such as ball screws, planetary screws, and bearings.
